90033 Optifitt-Serra-Prolunga

 ritorno

90033 Optifitt-Serra-Prolunga

Info

Varianti prodotto

Legenda

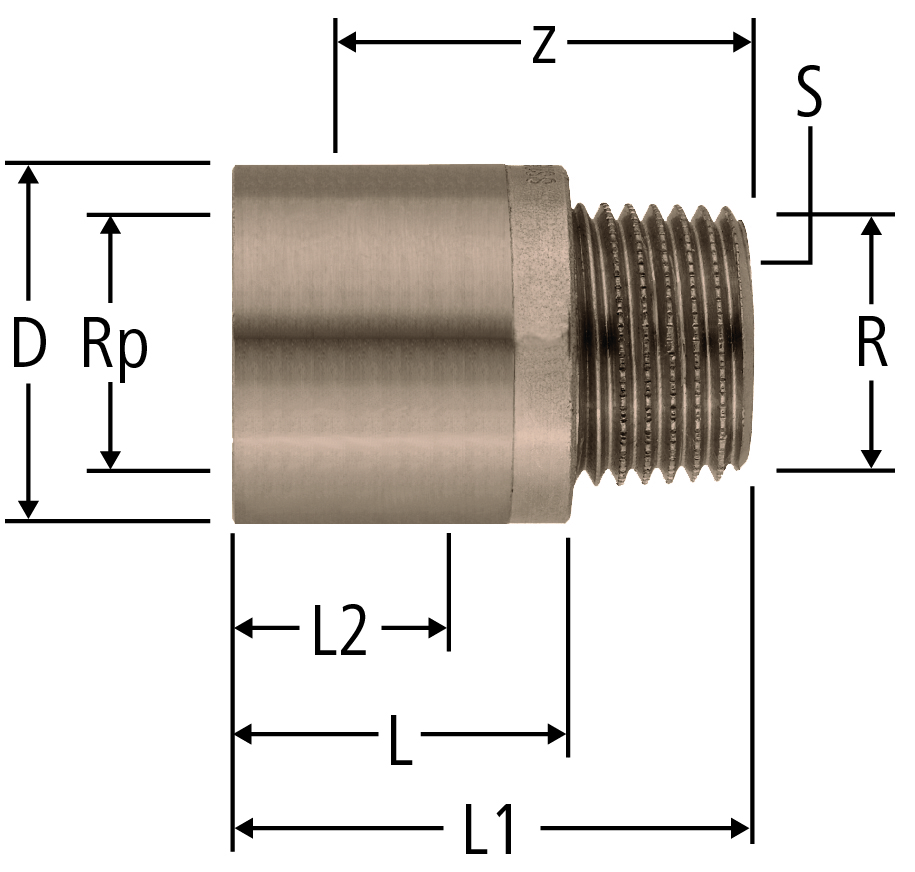

Rp R z L L1 L2 D S ζ Art. n. CHF RK VE suissetec Ordinare
⅜ x 15 ⅜ x 15 â…œ â…œ 15 15 27 - 22 10 0.3 â…œ x 15 90033.14
03 5 -
90033.14
pz.
⅜ x 20 ⅜ x 20 â…œ â…œ - 20 32 15 22 10 0.3 â…œ x 20 90033.15
03 5 -
90033.15
pz.
⅜ x 25 ⅜ x 25 â…œ â…œ - 25 37 19 22 10 0.3 â…œ x 25 90033.16
03 5 -
90033.16
pz.
⅜ x 30 ⅜ x 30 â…œ â…œ - 30 42 24 22 10 0.3 â…œ x 30 90033.17
03 5 -
90033.17
pz.
⅜ x 40 ⅜ x 40 â…œ â…œ - 40 52 36 22 10 0.3 â…œ x 40 90033.18
03 5 214.411
90033.18
pz.
⅜ x 50 ⅜ x 50 â…œ â…œ - 50 62 46 22 10 0.3 â…œ x 50 90033.19
03 5 -
90033.19
pz.
½ x 12.5 ½ x 12.5 ½ ½ - 12.5 28 - 27 12 0.2 ½ x 12.5 90033.22
03 5 -
90033.22
pz.
½ x 15 ½ x 15 ½ ½ - 15 31 - 27 12 0.2 ½ x 15 90033.23
03 5 -
90033.23
pz.
½ x 17.5 ½ x 17.5 ½ ½ 18 17.5 33 - 27 12 0.2 ½ x 17.5 90033.24
03 5 -
90033.24
pz.
½ x 20 ½ x 20 ½ ½ 20 20 36 - 27 12 0.2 ½ x 20 90033.26
03 5 -
90033.26
pz.
½ x 25 ½ x 25 ½ ½ - 25 41 19 27 12 0.2 ½ x 25 90033.27
03 5 -
90033.27
pz.
½ x 30 ½ x 30 ½ ½ - 30 46 24 27 12 0.2 ½ x 30 90033.28
03 5 -
90033.28
pz.
½ x 40 ½ x 40 ½ ½ - 40 56 34 27 12 0.2 ½ x 40 90033.29
03 5 214.412
90033.29
pz.
½ x 50 ½ x 50 ½ ½ - 50 66 45 27 12 0.2 ½ x 50 90033.30
03 5 -
90033.30
pz.
½ x 65 ½ x 65 ½ ½ - 65 81 59 27 12 0.2 ½ x 65 90033.40
03 5 -
90033.40
pz.
½ x 80 ½ x 80 ½ ½ - 80 96 67 27 12 0.2 ½ x 80 90033.41
03 5 -
90033.41
pz.
½ x 100 ½ x 100 ½ ½ - 100 116 55 27 12 0.2 ½ x 100 90033.42
03 5 -
90033.42
pz.
¾ x 20 ¾ x 20 ¾ ¾ 20 20 37 - 32 17 0.1 ¾ x 20 90033.34
03 5 -
90033.34
pz.
¾ x 25 ¾ x 25 ¾ ¾ 25 25 42 - 32 17 0.1 ¾ x 25 90033.45
03 5 -
90033.45
pz.
¾ x 30 ¾ x 30 ¾ ¾ - 30 47 24 32 17 0.1 ¾ x 30 90033.35
03 5 -
90033.35
pz.
¾ x 40 ¾ x 40 ¾ ¾ - 40 57 34 32 17 0.1 ¾ x 40 90033.36
03 5 214.413
90033.36
pz.
¾ x 50 ¾ x 50 ¾ ¾ - 50 67 45 32 17 0.1 ¾ x 50 90033.37
03 5 -
90033.37
pz.
¾ x 65 ¾ x 65 ¾ ¾ - 65 82 60 32 17 0.1 ¾ x 65 90033.46
03 5 -
90033.46
pz.
¾ x 80 ¾ x 80 ¾ ¾ - 80 97 60 32 17 0.1 ¾ x 80 90033.47
03 5 -
90033.47
pz.
¾ x 100 ¾ x 100 ¾ ¾ - 100 117 55 32 17 0.1 ¾ x 100 90033.48
03 5 -
90033.48
pz.
1 x 25 1 x 25 1 1 28 25 45 - 39 22 0.1 1 x 25 90033.50
03 5 -
90033.50
pz.
1 x 30 1 x 30 1 1 33 30 50 - 39 22 0.1 1 x 30 90033.51
03 5 -
90033.51
pz.
1 x 40 1 x 40 1 1 - 40 60 34 39 22 0.1 1 x 40 90033.52
03 5 214.414
90033.52
pz.
1 x 50 1 x 50 1 1 - 50 70 44 39 22 0.1 1 x 50 90033.53
03 5 -
90033.53
pz.
Nota

S = Esagono interno

CAD / BIM

Descrizione Optifitt-Serra-Prolunga
Dimensione
Numero di articolo
90033.14
