46071 TĂȘte avec filetage rond
pour corps avec filetage rond

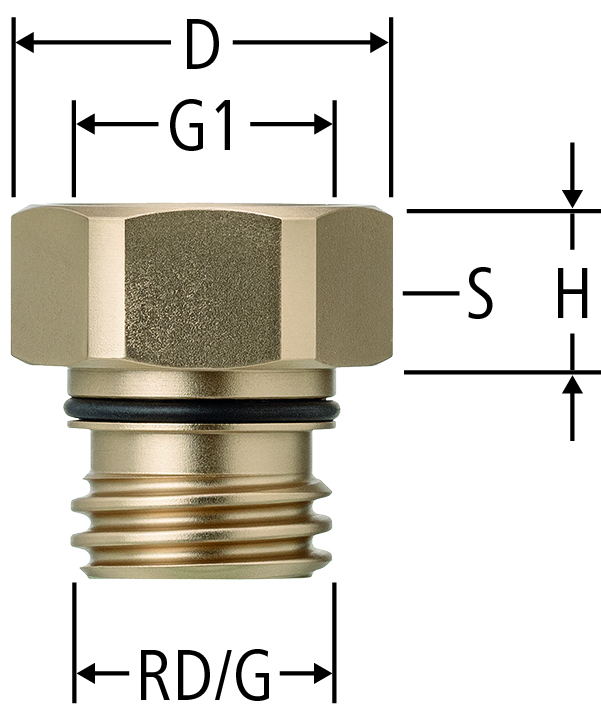

RD | G | G1 | H | D | S | N° d'art. | CHF | RK | VE | suissetec | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ÿ | Ÿ | Ÿ | 15 | 32 | 32 | Ÿ | 46071.12 |
| 51 | 1 | - | ||||
|
|||||||||||||||
38 x 5 | 1 | 1 | 15 | 45 | 45 | 1 | 46071.13 |
| 51 | 1 | - | ||||
|
|||||||||||||||
38 x 5 | 1Œ | 1Œ | 15 | 50 | 50 | 1Œ | 46071.14 |
| 51 | 1 | - | ||||
|
|||||||||||||||
45 x 5 | 1œ | 1œ | 15 | 60 | 55 | 1œ | 46071.15 |
| 51 | 1 | - | ||||
|
|||||||||||||||
55 x 5 | 2 | 2 | 20 | 75 | 70 | 2 | 46071.16 |
| 51 | 1 | - | ||||
|
|||||||||||||||
80 x 6 | 2œ | 2œ | 20 | 100 | 85 | 2œ | 46071.17 |
| 51 | 1 | - | ||||
|
|||||||||||||||
96 x 6 | 3 | 3 | 28 | 120 | 100 | 3 | 46071.18 |
| 51 | 1 | - | ||||
|
Indication
G1 = Dimension du corps avec filetage rond
CAO / BIM
Description | TĂȘte avec filetage rond |
Taille |
|
Numéro d’article |
46071.12
|
