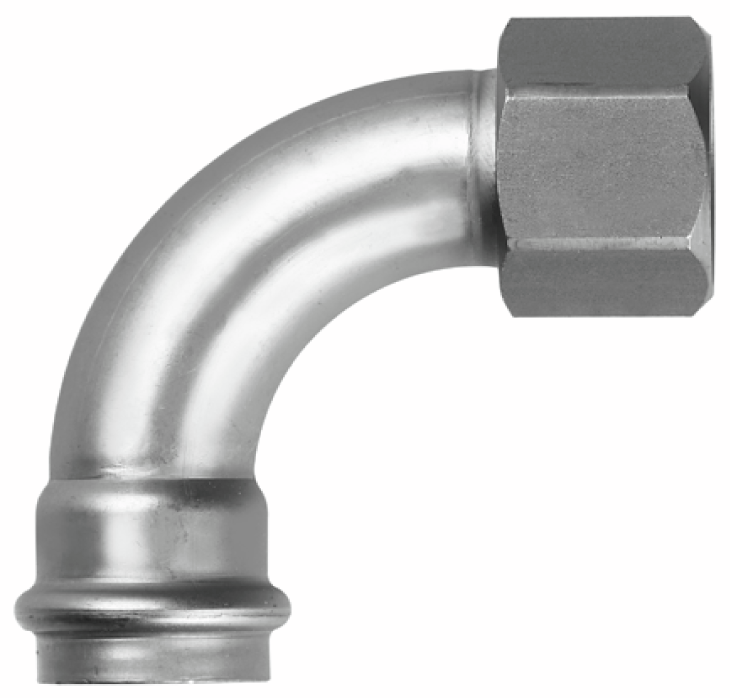

80308 Optipress-Industry-Curva 90°
con filetto femmina
| materiale principale | acciaio inossidabile 1.4301 |
| pressione d'esercizio max. | 16 bar |
| pressione nominale | PN 16 |
| temperatura d'esercizio max. | 95 °C |

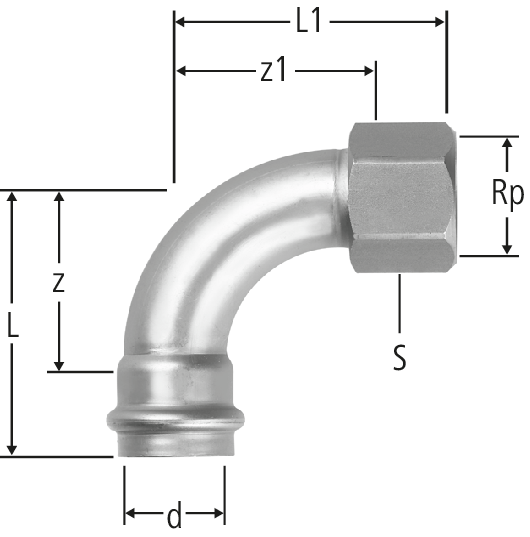

| Rp | d | z | z1 | L | L1 | W | S | ζ | Art. n° | CHF | RK | VE | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 15 | 16 | 26 | 38 | 39 | 90° | 24 | 0.8 | 15 x ½ | 80308.22 |
| 22 | 1 | - | ||||
|
|
||||||||||||||||||
| ½ | 18 | 18 | 26 | 40 | 42 | 90° | 24 | 0.5 | 18 x ½ | 80308.23 |
| 22 | 1 | - | ||||
|
|
||||||||||||||||||
| ½ | 22 | 26 | 44 | 49 | 54 | 90° | 24 | 0.3 | 22 x ½ | 80308.24 |
| 22 | 1 | - | ||||
|
|
||||||||||||||||||
| ¾ | 22 | 26 | 40 | 49 | 55 | 90° | 30 | 0.3 | 22 x ¾ | 80308.25 |
| 22 | 1 | - | ||||
|
|
||||||||||||||||||
| 1 | 28 | 34 | 53 | 58 | 70 | 90° | 36 | 0.4 | 28 x 1 | 80308.26 |
| 22 | 1 | - | ||||
|
|
||||||||||||||||||
CAD / BIM
| Descrizione | Optipress-Industry-Curva 90° |
| Dimensione |
|
| Numero di articolo |
80308.22
|
