81124 Optipress-Aquaplus-Collegamento
per vecchio tubo in rame
| materiale principale | bronzo CC246E |
| pressione nominale | PN 16 |
| temperatura d'esercizio max. | 95 °C |

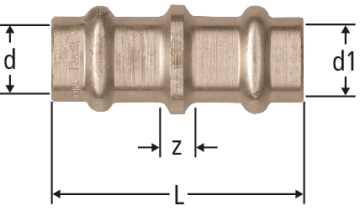

| d | d1 | z | L | ζ | Art. n° | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 10 | 4 | 40 | 0.7 | 12 x 10 | 81124.20 | 1 |
| 20 | 265.211 | ||||
|
|
||||||||||||||
| 12 | 12 | 5 | 40 | 0.8 | 12 x 12 | 81124.29 | 1 |
| 20 | 265.211 | ||||
|
|
||||||||||||||
| 15 | 10 | 6 | 46 | 0.7 | 15 x 10 | 81124.21 | 1 |
| 20 | 265.212 | ||||
|
|
||||||||||||||
| 15 | 12 | 10 | 49 | 0.7 | 15 x 12 | 81124.22 | 1 |
| 20 | 265.212 | ||||
|
|
||||||||||||||
| 15 | 14 | 7 | 52 | 0.7 | 15 x 14 | 81124.23 | 1 |
| 20 | 265.212 | ||||
|
|
||||||||||||||
| 15 | 15 | 7 | 51 | 0.7 | 15 x 15 | 81124.25 | 1 |
| 20 | - | ||||
|
|
||||||||||||||
| 18 | 17 | 10 | 54 | 0.6 | 18 x 17 | 81124.24 | 1 |
| 20 | 265.213 | ||||
|
|
||||||||||||||
| 18 | 18 | 8 | 52 | 0.6 | 18 x 18 | 81124.26 | 1 |
| 20 | - | ||||
|
|
||||||||||||||
| 22 | 22 | 7 | 55 | 0.5 | 22 x 22 | 81124.27 | 1 |
| 20 | - | ||||
|
|
||||||||||||||
| 28 | 28 | 10 | 58 | 0.4 | 28 x 28 | 81124.28 | 1 |
| 20 | - | ||||
|
|
||||||||||||||
CAD / BIM
| Descrizione | Optipress-Aquaplus-Collegamento |
| Dimensione |
|
| Numero di articolo |
81124.20
|
