81041 Optipress-Aquaplus-Raccordo
| materiale principale | bronzo CC499K |
| pressione d'esercizio max. | 16 bar |
| pressione nominale | PN 16 |
| temperatura d'esercizio max. | 95 °C |

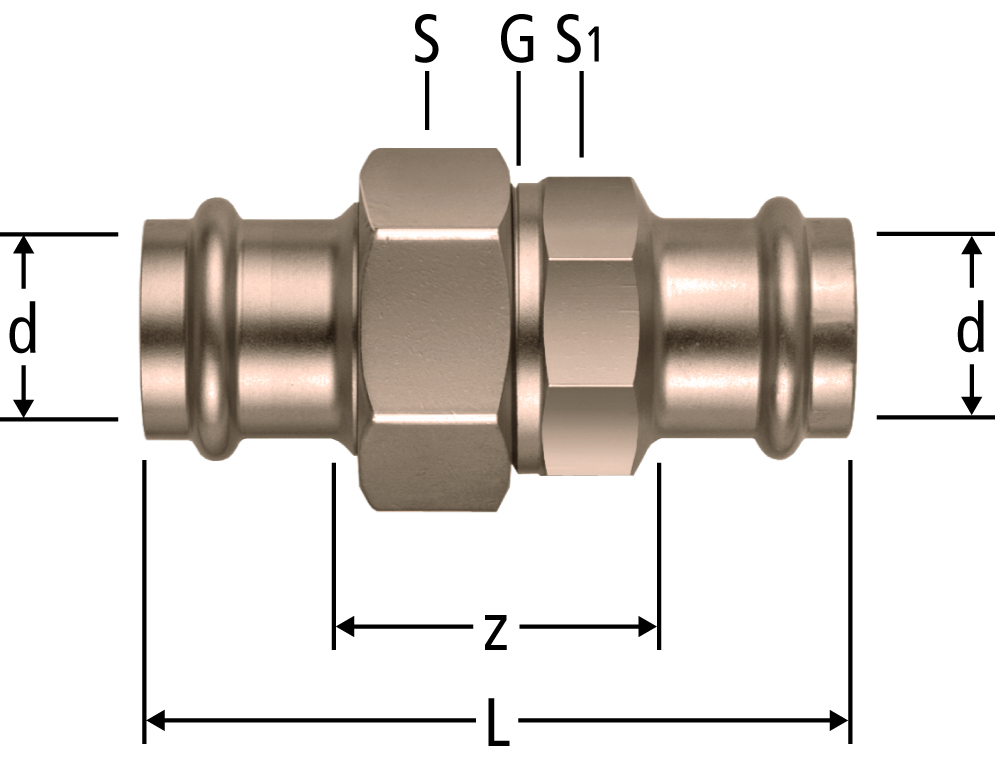

| G | d | z | L | S | S1 | ζ | Art. n° | RK | VE | suissetec NPK426 | suissetec NPK453 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¾ | 15 | 38 | 82 | 30 | 28 | 1.0 | 15 | 81041.22 | 20 | 1 | 266.312 | 336.111 |
| ||||
|
|
|||||||||||||||||
| ¾ | 18 | 41 | 85 | 30 | 28 | 0.8 | 18 | 81041.23 | 20 | 1 | 266.313 | 336.112 |
| ||||
|
|
|||||||||||||||||
| 1 | 22 | 44 | 91 | 37 | 34 | 0.6 | 22 | 81041.24 | 20 | 1 | 266.314 | 336.113 |
| ||||
|
|
|||||||||||||||||
| 1¼ | 28 | 53 | 100 | 46 | 42 | 0.5 | 28 | 81041.25 | 20 | 1 | 266.315 | 336.114 |
| ||||
|
|
|||||||||||||||||
| 1½ | 35 | 57 | 108 | 53 | 50 | 0.4 | 35 | 81041.26 | 20 | 1 | 266.316 | 336.115 |
| ||||
|
|
|||||||||||||||||
| 1¾ | 42 | 59 | 131 | 60 | 58 | 0.4 | 42 | 81041.27 | 20 | 1 | 266.317 | 336.116 |
| ||||
|
|
|||||||||||||||||
| 2⅜ | 54 | 61 | 141 | 78 | 70 | 0.4 | 54 | 81041.28 | 20 | 1 | 266.318 | 336.117 |
| ||||
|
|
|||||||||||||||||
CAD / BIM
| Descrizione | Optipress-Aquaplus-Raccordo |
| Dimensione |
|
| Numero di articolo |
81041.22
|
