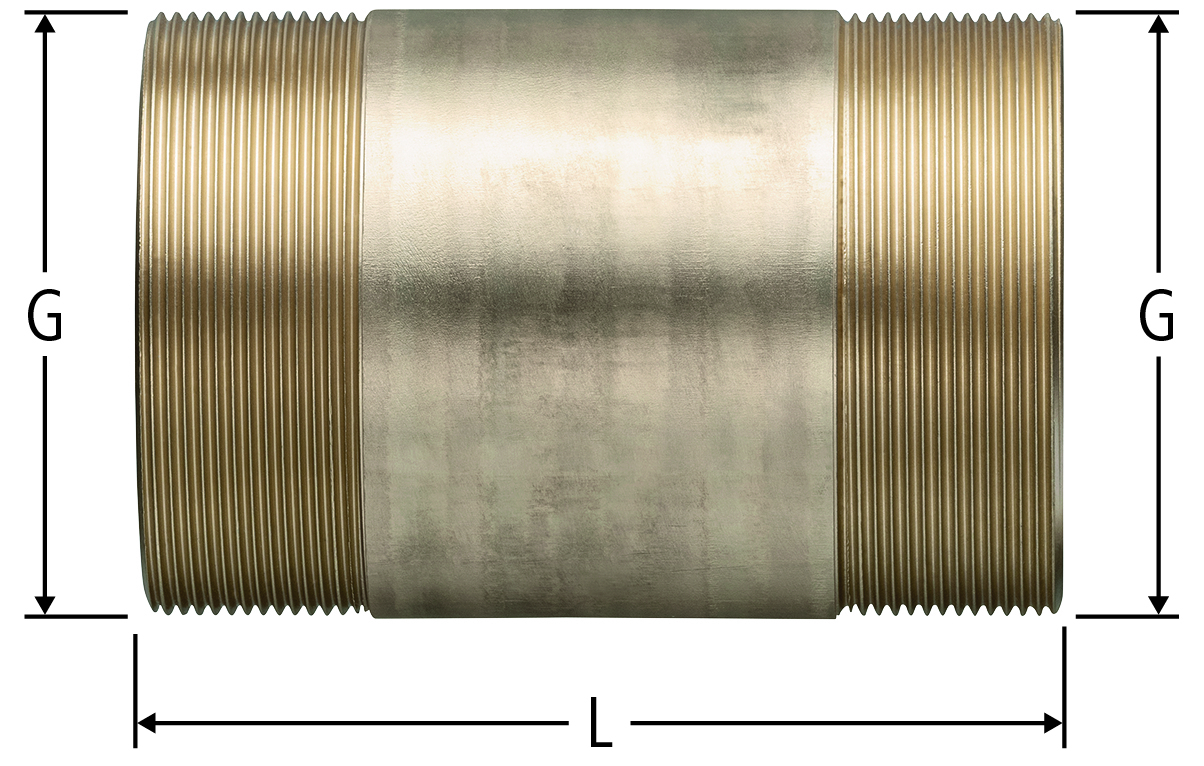

90207 Optifitt-Serra-Nippel doppio G 3
indicare alla comanda nel campo dei commenti la lunghezza L
materiale principale | bronzo CC499K |
pressione nominale | PN 16 |
temperatura d'esercizio max. | 90 °C |
G | L min | L max | ζ | Art. n° | VE | L | CHF | RK | suissetec | |
---|---|---|---|---|---|---|---|---|---|---|
3 | 65 | 80 | 0.1 | 3 x 65-80 | 90207.01 | 1 |
| 51 | - | |
3 | 81 | 120 | 0.1 | 3 x 81-120 | 90207.02 | 1 |
| 51 | - | |
3 | 121 | 160 | 0.1 | 3 x 121-160 | 90207.03 | 1 |
| 51 | - | |
3 | 161 | 200 | 0.1 | 3 x 161-200 | 90207.04 | 1 |
| 51 | - | |
3 | 201 | 250 | 0.1 | 3 x 201-250 | 90207.05 | 1 |
| 51 | - | |
3 | 251 | 300 | 0.1 | 3 x 251-300 | 90207.06 | 1 |
| 51 | - | |
3 | 301 | 350 | 0.1 | 3 x 301-350 | 90207.07 | 1 |
| 51 | - | |
3 | 351 | 400 | 0.1 | 3 x 351-400 | 90207.08 | 1 |
| 51 | - | |
3 | 401 | 450 | 0.1 | 3 x 401-450 | 90207.09 | 1 |
| 51 | - | |
3 | 451 | 500 | 0.1 | 3 x 451-500 | 90207.10 | 1 |
| 51 | - | |
3 | 0.1 | 3 x 75 | 90207.11 | 1 | 75 |
| 51 | - | ||
3 | 0.1 | 3 x 76 | 90207.12 | 1 | 76 |
| 51 | - | ||
3 | 0.1 | 3 x 88 | 90207.13 | 1 | 88 |
| 51 | - | ||
3 | 0.1 | 3 x 98 | 90207.14 | 1 | 98 |
| 51 | - | ||
3 | 0.1 | 3 x 99 | 90207.15 | 1 | 99 |
| 51 | - | ||
3 | 0.1 | 3 x 108 | 90207.16 | 1 | 108 |
| 51 | - |
CAD / BIM
Descrizione | Optifitt-Serra-Nippel doppio G 3 |
Dimensione |
|
Numero di articolo |
90207.01
|
