88023 Optipress-Gaz-Manicotto passante
| materiale principale | bronzo CC499K |
| pressione d'esercizio max. | 1 bar |
| pressione nominale | PN 1 |
| temperatura d'esercizio max. | 70 °C |

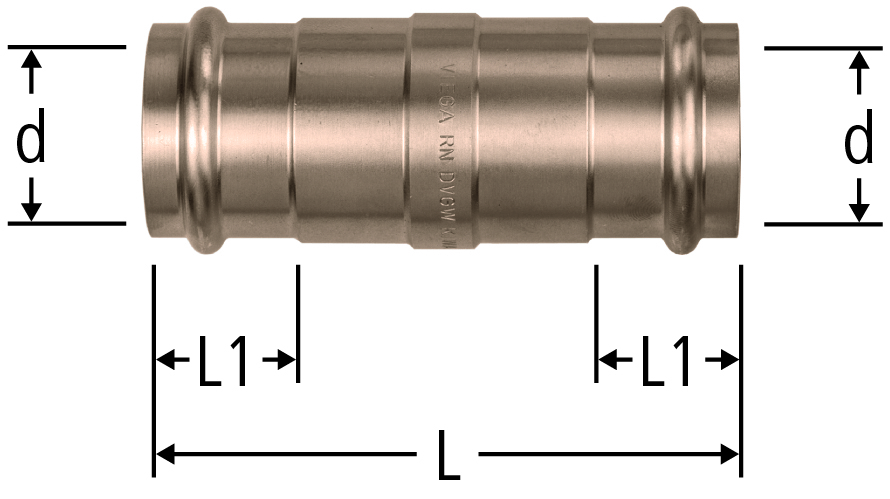

| d | L | L1 | ζ | Art. n° | RK | VE | CHF | |
|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 22 | 1.2 | 15 | 88023.22 | 20 | 1 |
|
| 18 | 80 | 22 | 1.0 | 18 | 88023.23 | 20 | 1 |
|
| 22 | 85 | 24 | 1.0 | 22 | 88023.24 | 20 | 1 |
|
| 28 | 95 | 24 | 0.8 | 28 | 88023.25 | 20 | 1 |
|
| 35 | 105 | 26 | 0.6 | 35 | 88023.26 | 20 | 1 |
|
| 42 | 120 | 36 | 0.6 | 42 | 88023.27 | 20 | 1 |
|
| 54 | 135 | 40 | 0.5 | 54 | 88023.28 | 20 | 1 |
|
Nota
L1 = profondità minima
CAD / BIM
| Descrizione | Optipress-Gaz-Manicotto passante |
| Dimensione |
|
| Numero di articolo |
88023.22
|
