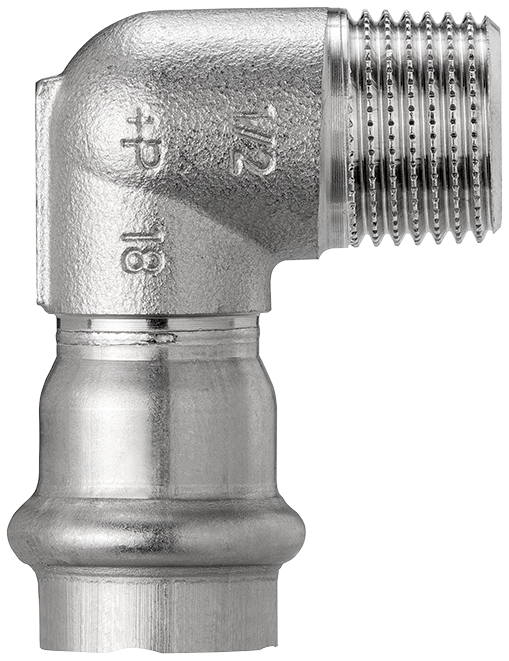

80307 Optipress-Industry-Winkel
mit Aussengewinde
| Hauptwerkstoff | Edelstahl 1.4301 |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

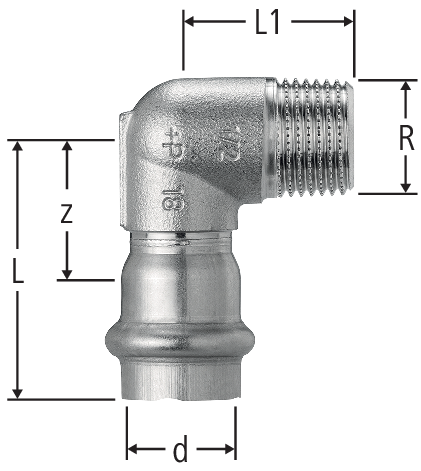

| R | d | z | L | L1 | ζ | Art.-Nr. | CHF | RK | VE | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ⅜ | 15 | 24 | 46 | 29 | 1.3 | 15 x ⅜ | 80307.22 |
| 22 | 1 | - | ||||
|
|
|||||||||||||||
| ½ | 15 | 24 | 46 | 29 | 1.3 | 15 x ½ | 80307.23 |
| 22 | 1 | - | ||||
|
|
|||||||||||||||
| ½ | 18 | 24 | 46 | 30 | 1.2 | 18 x ½ | 80307.24 |
| 22 | 1 | - | ||||
|
|
|||||||||||||||
| ¾ | 22 | 26 | 49 | 35 | 1.1 | 22 x ¾ | 80307.25 |
| 22 | 1 | - | ||||
|
|
|||||||||||||||
| 1 | 28 | 32 | 56 | 41 | 1.1 | 28 x 1 | 80307.26 |
| 22 | 1 | - | ||||
|
|
|||||||||||||||
CAD / BIM

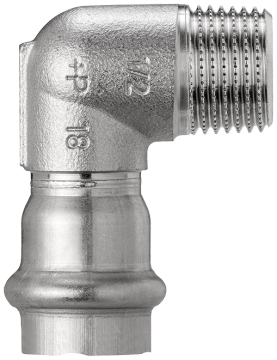

| Beschreibung | Optipress-Industry-Winkel |
| Grösse |
|
| Artikelnummer |
80307.22
|
