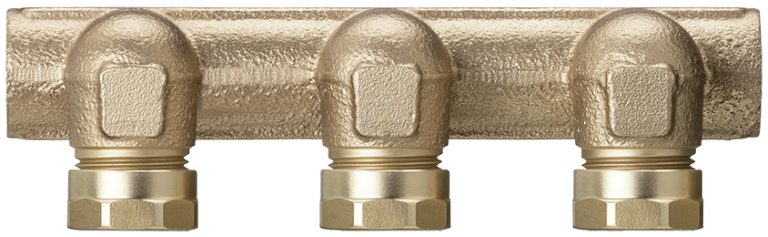

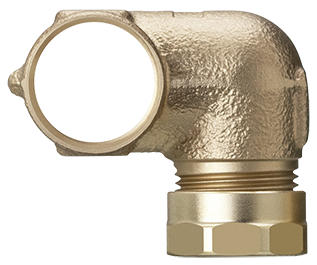

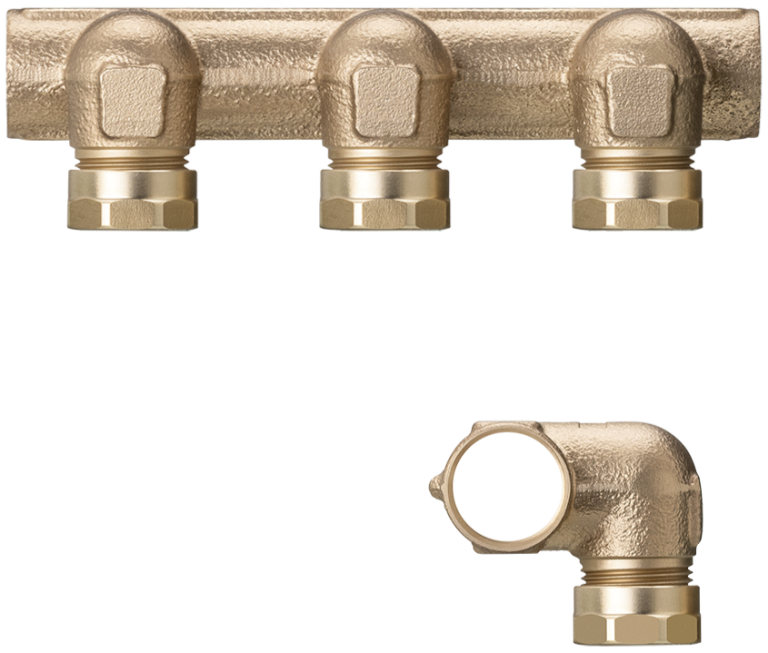

86002 Optiflex-Verteiler gekröpft
mit Steckabgang
mit Innengewinde
| Hauptwerkstoff | Rotguss CC246E |
| Betriebsdruck max. | 10 bar |
| Nenndruck | PN 10 |
| Betriebstemperatur max. | 70 °C |

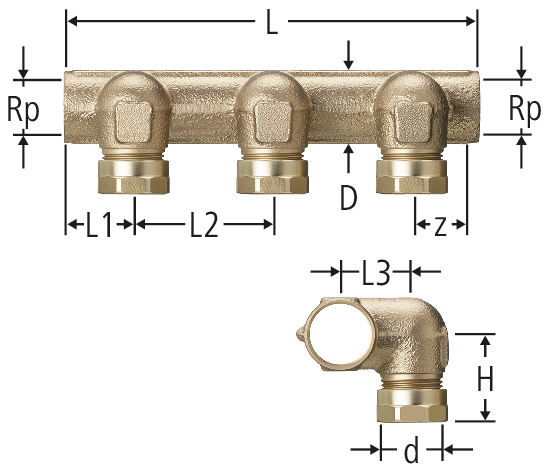

| DN | Rp | d | D | z | L | L1 | L2 | L3 | H | N | ζ | Art.-Nr. | VE | CHF | RK | VE | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | ¾ | 20 | 33 | 15 | 58 | 29 | 58 | 29.5 | 32 | 1 | 1.9 | 20 x 1 | 86002.41 | 1 |
| 10 | 1 | 324.414 | ||||
|
|
||||||||||||||||||||||
| 20 | ¾ | 20 | 33 | 15 | 116 | 29 | 58 | 29.5 | 32 | 2 | 1.9 | 20 x 2 | 86002.42 | 1 |
| 10 | 1 | 324.424 | ||||
|
|
||||||||||||||||||||||
| 20 | ¾ | 20 | 33 | 15 | 174 | 29 | 58 | 29.5 | 32 | 3 | 2 | 20 x 3 | 86002.43 | 1 |
| 10 | 1 | 324.434 | ||||
|
|
||||||||||||||||||||||
| 20 | ¾ | 20 | 33 | 15 | 232 | 29 | 58 | 29.5 | 32 | 4 | 2 | 20 x 4 | 86002.44 | 1 |
| 10 | 1 | 324.444 | ||||
|
|
||||||||||||||||||||||
Hinweis
N = Anzahl Abgänge
CAD / BIM
| Beschreibung | Optiflex-Verteiler gekröpft |
| Grösse |
|
| Artikelnummer |
86002.41
|
