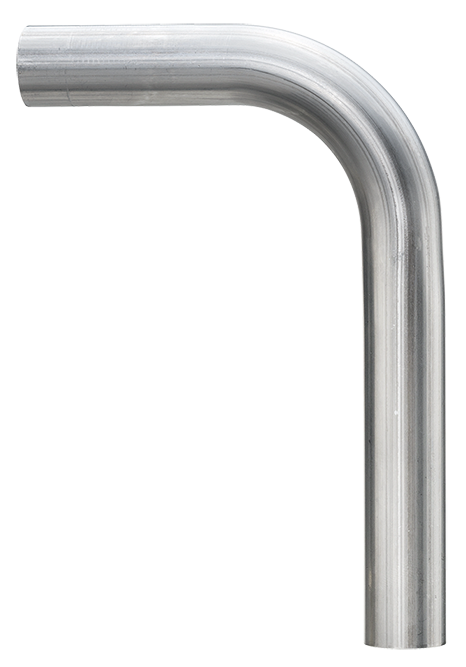

81083 Optipress-Rohrbogen 90°
| Hauptwerkstoff | Edelstahl 1.4401 |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |
| D | L | L1 | L2 | L3 | W | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | suissetec NPK453 | CHF | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 150 | 22 | 92 | 90° | 3.8 | 15 x 90° | 81083.72 | 20 | 1 | 262.332 | 332.512 |
|
| 18 | 90 | 150 | 26 | 86 | 90° | 3.0 | 18 x 90° | 81083.73 | 20 | 1 | 262.333 | 332.513 |
|
| 22 | 100 | 150 | 28 | 78 | 90° | 2.5 | 22 x 90° | 81083.74 | 20 | 1 | 262.334 | 332.514 |
|
| 28 | 110 | 160 | 26 | 76 | 90° | 2.4 | 28 x 90° | 81083.75 | 20 | 1 | 262.335 | 332.515 |
|
| 35 | 130 | 200 | 30 | 100 | 90° | 2.0 | 35 x 90° | 81083.76 | 20 | 1 | 262.336 | 332.516 |
|
| 42 | 170 | 250 | 41 | 121 | 90° | 2.1 | 42 x 90° | 81083.77 | 20 | 1 | 262.337 | 332.517 |
|
| 54 | 220 | 300 | 62 | 142 | 90° | 2.1 | 54 x 90° | 81083.78 | 20 | 1 | 262.338 | 332.518 |
|
Hinweis

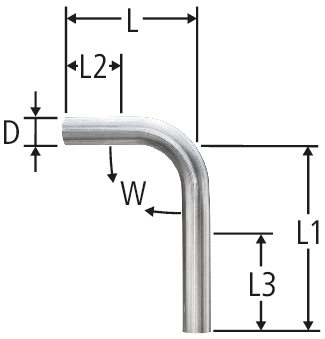

L2, L3 = maximale Kürzungsmasse
CAD / BIM
| Beschreibung | Optipress-Rohrbogen 90° |
| Grösse |
|
| Artikelnummer |
81083.72
|
