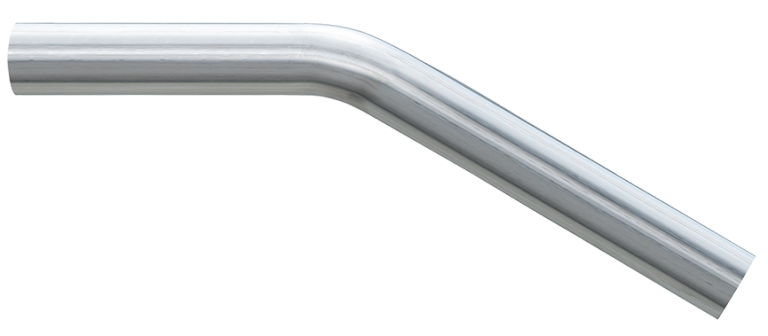

81083 Optipress-Rohrbogen 30°
| Hauptwerkstoff | Edelstahl 1.4401 |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

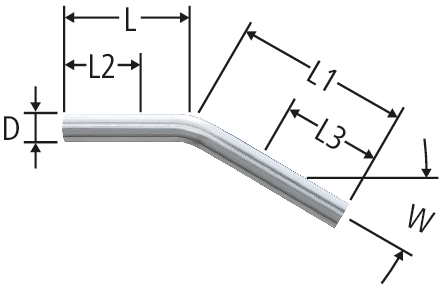

| D | L | L1 | L2 | L3 | W | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | suissetec NPK453 | CHF | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 135 | 44 | 99 | 30° | 3.3 | 15 x 30° | 81083.32 | 20 | 1 | 262.312 | 332.612 |
|
| 18 | 90 | 133 | 52 | 95 | 30° | 2.8 | 18 x 30° | 81083.33 | 20 | 1 | 262.313 | 332.613 |
|
| 22 | 100 | 130 | 60 | 90 | 30° | 2.6 | 22 x 30° | 81083.34 | 20 | 1 | 262.314 | 332.614 |
|
| 28 | 110 | 134 | 67 | 91 | 30° | 2.2 | 28 x 30° | 81083.35 | 20 | 1 | 262.315 | 332.615 |
|
| 35 | 130 | 164 | 81 | 115 | 30° | 2.0 | 35 x 30° | 81083.36 | 20 | 1 | 262.316 | 332.616 |
|
| 42 | 170 | 209 | 102 | 141 | 30° | 1.9 | 42 x 30° | 81083.37 | 20 | 1 | 262.317 | 332.617 |
|
| 54 | 220 | 249 | 141 | 170 | 30° | 1.9 | 54 x 30° | 81083.38 | 20 | 1 | 262.318 | 332.618 |
|
| 76.1 | 360 | 360 | 195 | 195 | 30° | 2.9 | 76.1 x 30° | 81083.39 | 23 | 1 | 262.321 | 332.619 |
|
| 88.9 | 416 | 416 | 260 | 260 | 30° | 1.7 | 88.9 x 30° | 81083.40 | 23 | 1 | 262.322 | 332.621 |
|
| 108 | 484 | 484 | 175 | 175 | 30° | 1.1 | 108 x 30° | 81083.41 | 23 | 1 | 262.323 | 332.622 |
|
Hinweis
L2, L3 = maximale Kürzungsmasse
CAD / BIM
| Beschreibung | Optipress-Rohrbogen 30° |
| Grösse |
|
| Artikelnummer |
81083.32
|
