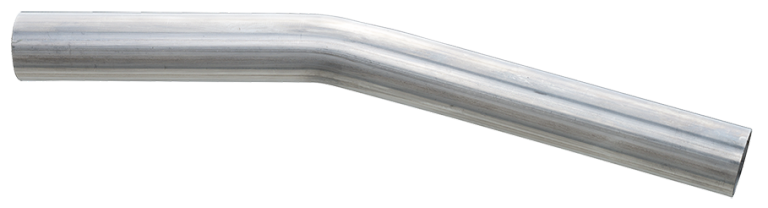

81083 Optipress-Rohrbogen 15°
| Hauptwerkstoff | Edelstahl 1.4401 |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

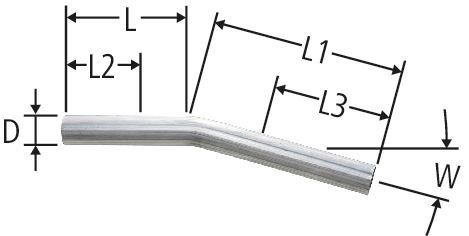

| D | L | L1 | L2 | L3 | W | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 134 | 48 | 102 | 15° | 3.0 | 15 x 15° | 81083.22 | 1 |
| 20 | 262.312 |
| 18 | 90 | 132 | 57 | 99 | 15° | 2.5 | 18 x 15° | 81083.23 | 1 |
| 20 | 262.313,332.633 |
| 22 | 100 | 129 | 66 | 95 | 15° | 2.2 | 22 x 15° | 81083.24 | 1 |
| 20 | 262.314,332.634 |
| 28 | 110 | 133 | 74 | 97 | 15° | 2.0 | 28 x 15° | 81083.25 | 1 |
| 20 | 262.315,332.635 |
| 35 | 130 | 162 | 90 | 122 | 15° | 1.8 | 35 x 15° | 81083.26 | 1 |
| 20 | 262.316,332.636 |
| 42 | 170 | 206 | 114 | 150 | 15° | 1.8 | 42 x 15° | 81083.27 | 1 |
| 20 | 262.317,332.637 |
| 54 | 220 | 246 | 155 | 181 | 15° | 1.8 | 54 x 15° | 81083.28 | 1 |
| 20 | 262.318,332.638 |
| 76.1 | 359 | 359 | 210 | 210 | 15° | 2.8 | 76.1 x 15° | 81083.29 | 1 |
| 23 | 262.321,332.639 |
| 88.9 | 415 | 415 | 275 | 275 | 15° | 1.6 | 88.9 x 15° | 81083.30 | 1 |
| 23 | 262.322,332.641 |
| 108 | 483 | 483 | 280 | 280 | 15° | 1.0 | 108 x 15° | 81083.31 | 1 |
| 23 | 262.323,332.642 |
Hinweis
L2, L3 = maximale Kürzungsmasse
CAD / BIM
| Beschreibung | Optipress-Rohrbogen 15° |
| Grösse |
|
| Artikelnummer |
81083.22
|
