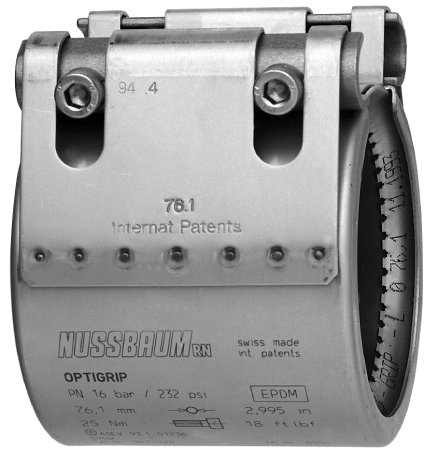

83090 Rohrkupplung
| Hauptwerkstoff | EPDM |
| Sekundärwerkstoff | Edelstahl 1.4404/1.4571 |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 100 °C |

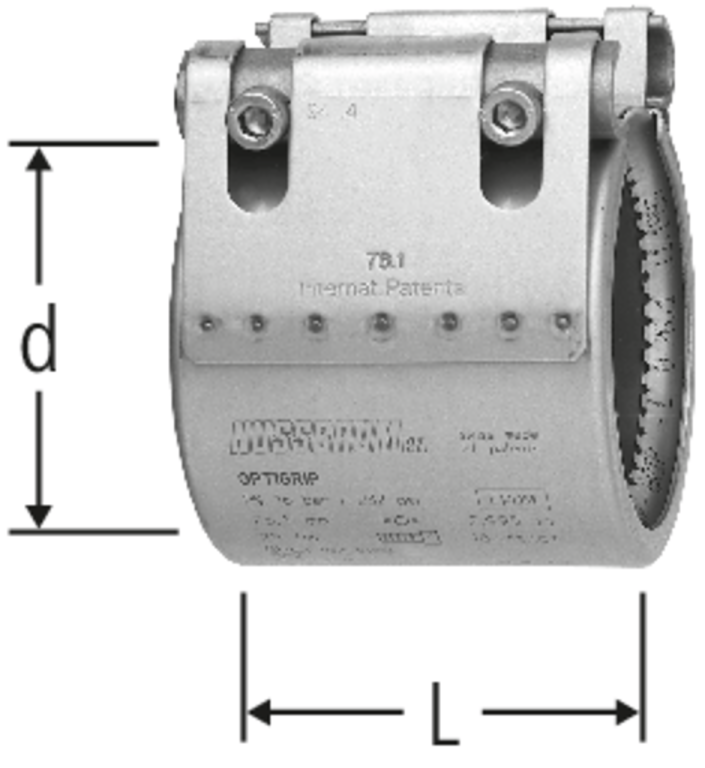

| d | L | ζ | Art.-Nr. | VE | DN | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|
| 64 | 77 | 0.1 | 64 | 83090.09 | 1 |
| 04 | 811.545 | |
| 76.1 | 95 | 0.1 | 76.1 | 83090.10 | 1 | 65 |
| 04 | 811.535 |
| 88.9 | 95 | 0.1 | 88.9 | 83090.11 | 1 | 80 |
| 04 | 811.536 |
| 108 | 95 | 0.1 | 108 | 83090.13 | 1 | 100 |
| 04 | 811.546 |
| 114.3 | 95 | 0.1 | 114.3 | 83090.14 | 1 | 100 |
| 04 | 811.537 |
| 139.7 | 110 | 0.1 | 139.7 | 83090.19 | 1 | 125 |
| 04 | 811.538 |
| 168.3 | 110 | 0.1 | 168.3 | 83090.23 | 1 | 150 |
| 04 | 811.541 |
| 219.1 | 142 | 0.1 | 219.1 | 83090.24 | 1 | 200 |
| 04 | 811.542 |
CAD / BIM
| Beschreibung | Rohrkupplung |
| Grösse |
|
| Artikelnummer |
83090.09
|
