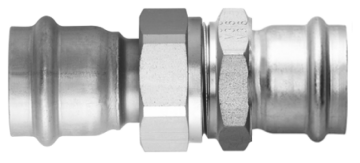

55041 Optipress-Therm-Verschraubung
| Hauptwerkstoff | Stahl 1.0308 |
| Oberflächenbehandlung | verzinkt |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

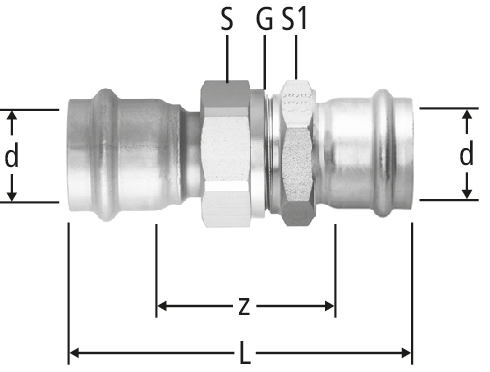

| G | d | z | L | S | S1 | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¾ | 15 | 33 | 77 | 30 | 30 | 0.4 | 15 | 55041.22 | 1 |
| 34 | 326.112 | ||||
|
|
||||||||||||||||
| ¾ | 18 | 35 | 79 | 30 | 30 | 0.2 | 18 | 55041.23 | 1 |
| 34 | 326.113 | ||||
|
|
||||||||||||||||
| 1 | 22 | 38 | 84 | 36 | 37 | 0.2 | 22 | 55041.24 | 1 |
| 34 | 326.114 | ||||
|
|
||||||||||||||||
| 1¼ | 28 | 43 | 91 | 46 | 46 | 0.2 | 28 | 55041.25 | 1 |
| 34 | 326.115 | ||||
|
|
||||||||||||||||
| 1½ | 35 | 43 | 95 | 50 | 53 | 0.2 | 35 | 55041.26 | 1 |
| 34 | 326.116 | ||||
|
|
||||||||||||||||
| 1¾ | 42 | 43 | 115 | 55 | 60 | 0.1 | 42 | 55041.27 | 1 |
| 34 | 326.117 | ||||
|
|
||||||||||||||||
| 2⅜ | 54 | 53 | 133 | 70 | 78 | 0.1 | 54 | 55041.28 | 1 |
| 34 | 326.118 | ||||
|
|
||||||||||||||||
