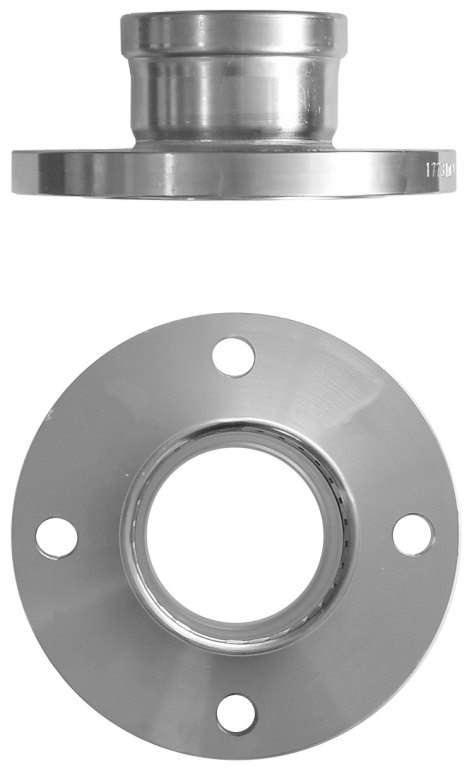

55050 Optipress-Therm-Flanschübergang PN 6
| Hauptwerkstoff | Stahl 1.0308 |
| Oberflächenbehandlung | verzinkt |
| Betriebsdruck max. | 6 bar |
| Nenndruck | PN 6 |
| Betriebstemperatur max. | 95 °C |

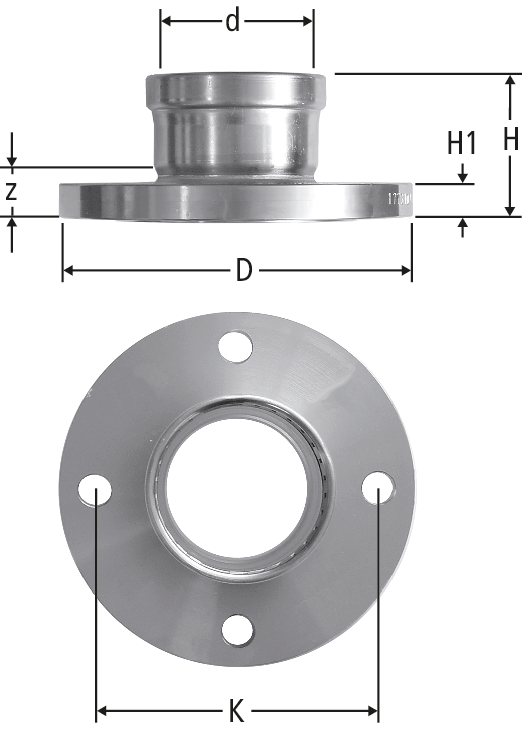

| DN | d | D | z | H | H1 | N | K | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 35 | 120 | 40 | 66 | 14 | 4x Ø14 | 90 | 0.2 | 35 x 32 | 55050.26 | 1 |
| 34 | 326.413 | ||||
|
|
||||||||||||||||||
| 40 | 42 | 130 | 53 | 89 | 14 | 4x Ø14 | 100 | 0.1 | 42 x 40 | 55050.27 | 1 |
| 34 | 326.414 | ||||
|
|
||||||||||||||||||
| 50 | 54 | 140 | 53 | 93 | 14 | 4x Ø14 | 110 | 0.1 | 54 x 50 | 55050.28 | 1 |
| 34 | 326.415 | ||||
|
|
||||||||||||||||||
| 50 | 64 | 140 | 27 | 70 | 14 | 4x Ø14 | 110 | 0.1 | 64 x 50 | 55050.70 | 1 |
| 33 | - | ||||
|
|
||||||||||||||||||
| 65 | 64 | 160 | 27 | 70 | 14 | 4x Ø14 | 130 | 0.1 | 64 x 65 | 55050.71 | 1 |
| 33 | - | ||||
|
|
||||||||||||||||||
| 65 | 76.1 | 160 | 26 | 76 | 14 | 4x Ø14 | 130 | 0.1 | 76.1 x 65 | 55050.72 | 1 |
| 33 | 326.416 | ||||
|
|
||||||||||||||||||
| 80 | 88.9 | 190 | 28 | 78 | 16 | 4x Ø18 | 150 | 0.1 | 88.9 x 80 | 55050.73 | 1 |
| 33 | 326.417 | ||||
|
|
||||||||||||||||||
| 100 | 108 | 210 | 28 | 88 | 16 | 4x Ø18 | 170 | 0.1 | 108 x 100 | 55050.74 | 1 |
| 33 | 326.418 | ||||
|
|
||||||||||||||||||
Hinweis
N = Anzahl Löcher x Durchmesser
CAD / BIM
| Beschreibung | Optipress-Therm-Flanschübergang PN 6 |
| Grösse |
|
| Artikelnummer |
55050.26
|
