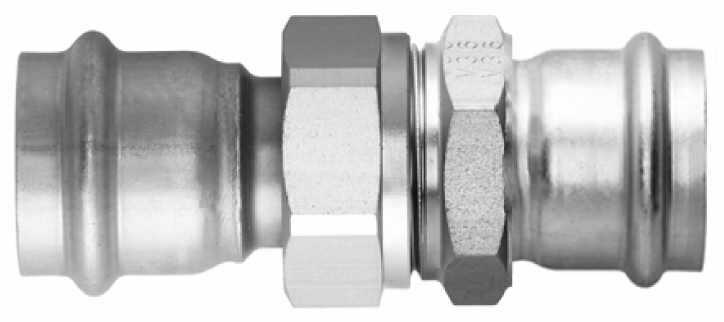

80041 Optipress-Aquaplus-Verschraubung
Ãœberwurfmutter aus Messing vernickelt
| Hauptwerkstoff | Edelstahl 1.4401 |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

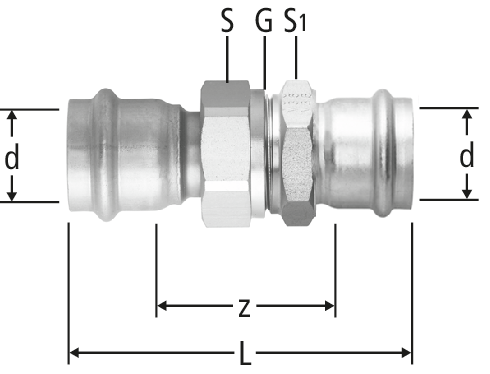

| G | d | z | L | S | S1 | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | suissetec NPK453 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¾ | 15 | 42 | 86 | 30 | 30 | 0.4 | 15 | 80041.22 | 20 | 1 | 266.312 | 336.111 |
| ||||
|
|
|||||||||||||||||
| ¾ | 18 | 41 | 85 | 27 | 30 | 0.2 | 18 | 80041.23 | 20 | 1 | 266.313 | 336.112 |
| ||||
|
|
|||||||||||||||||
| 1 | 22 | 48 | 94 | 36 | 37 | 0.2 | 22 | 80041.24 | 20 | 1 | 266.314 | 336.113 |
| ||||
|
|
|||||||||||||||||
| 1¼ | 28 | 53 | 101 | 46 | 46 | 0.2 | 28 | 80041.25 | 20 | 1 | 266.315 | 336.114 |
| ||||
|
|
|||||||||||||||||
| 1½ | 35 | 58 | 111 | 50 | 53 | 0.2 | 35 | 80041.26 | 20 | 1 | 266.316 | 336.115 |
| ||||
|
|
|||||||||||||||||
| 1¾ | 42 | 64 | 136 | 55 | 60 | 0.1 | 42 | 80041.27 | 20 | 1 | 266.317 | 336.116 |
| ||||
|
|
|||||||||||||||||
| 2⅜ | 54 | 71 | 152 | 70 | 78 | 0.1 | 54 | 80041.28 | 20 | 1 | 266.318 | 336.117 |
| ||||
|
|
|||||||||||||||||
CAD / BIM
| Beschreibung | Optipress-Aquaplus-Verschraubung |
| Grösse |
|
| Artikelnummer |
80041.22
|
