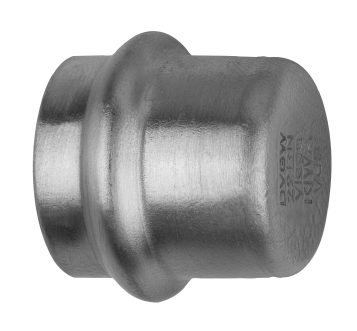

80025 Optipress-Aquaplus-Verschlusskappe
| Hauptwerkstoff | Edelstahl 1.4401 |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |
| d | L | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 26 | 15 | 80025.22 | 5 |
| 20 | 265.512,333.312 | ||||
|
|
|||||||||||
| 18 | 26 | 18 | 80025.23 | 5 |
| 20 | 265.513,333.313 | ||||
|
|
|||||||||||
| 22 | 27 | 22 | 80025.24 | 5 |
| 20 | 265.514,333.314 | ||||
|
|
|||||||||||
| 28 | 28 | 28 | 80025.25 | 5 |
| 20 | 265.515,333.315 | ||||
|
|
|||||||||||
| 35 | 31 | 35 | 80025.26 | 5 |
| 20 | 265.516,333.316 | ||||
|
|
|||||||||||
| 42 | 41 | 42 | 80025.27 | 1 |
| 20 | 265.517,333.317 | ||||
|
|
|||||||||||
| 54 | 44 | 54 | 80025.28 | 1 |
| 20 | 265.518,333.318 | ||||
|
|
|||||||||||
| 76.1 | 85 | 76.1 | 80025.71 | 1 |
| 23 | 265.521,333.319 | ||||
|
|
|||||||||||
| 88.9 | 85 | 88.9 | 80025.72 | 1 |
| 23 | 265.522,333.321 | ||||
|
|
|||||||||||
| 108 | 95 | 108 | 80025.73 | 1 |
| 23 | 265.523,333.322 | ||||
|
|
|||||||||||
CAD / BIM
| Beschreibung | Optipress-Aquaplus-Verschlusskappe |
| Grösse |
|
| Artikelnummer |
80025.22
|
