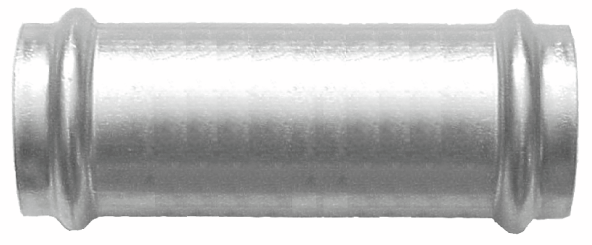

80022 Optipress-Aquaplus-Schiebemuffe
| Hauptwerkstoff | Edelstahl 1.4401 |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

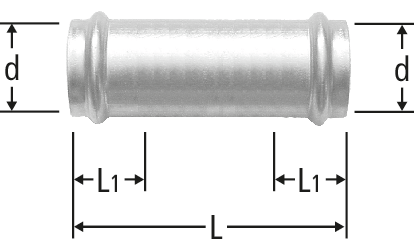

| d | L | L1 | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 22 | 0.4 | 15 | 80022.22 | 5 |
| 20 | 265.212,333.132 | ||||
|
|
|||||||||||||
| 18 | 80 | 22 | 0.2 | 18 | 80022.23 | 5 |
| 20 | 265.213,333.133 | ||||
|
|
|||||||||||||
| 22 | 80 | 23 | 0.2 | 22 | 80022.24 | 5 |
| 20 | 265.214,333.134 | ||||
|
|
|||||||||||||
| 28 | 95 | 24 | 0.2 | 28 | 80022.25 | 5 |
| 20 | 265.215,333.135 | ||||
|
|
|||||||||||||
| 35 | 105 | 26 | 0.2 | 35 | 80022.26 | 5 |
| 20 | 265.216,333.136 | ||||
|
|
|||||||||||||
| 42 | 120 | 36 | 0.1 | 42 | 80022.27 | 5 |
| 20 | 265.217,333.137 | ||||
|
|
|||||||||||||
| 54 | 136 | 40 | 0.1 | 54 | 80022.28 | 1 |
| 20 | 265.218,333.138 | ||||
|
|
|||||||||||||
| 64 | 110 | 43 | 0.1 | 64 | 80022.70 | 1 |
| 23 | - | ||||
|
|
|||||||||||||
| 76.1 | 125 | 50 | 0.1 | 76.1 | 80022.71 | 1 |
| 23 | 265.221,333.139 | ||||
|
|
|||||||||||||
| 88.9 | 125 | 50 | 0.1 | 88.9 | 80022.72 | 1 |
| 23 | 265.222,333.141 | ||||
|
|
|||||||||||||
| 108 | 145 | 60 | 0.1 | 108 | 80022.73 | 1 |
| 23 | 265.223,333.142 | ||||
|
|
|||||||||||||
Hinweis
L1 = minimale Einstecktiefe
CAD / BIM
| Beschreibung | Optipress-Aquaplus-Schiebemuffe |
| Grösse |
|
| Artikelnummer |
80022.22
|
