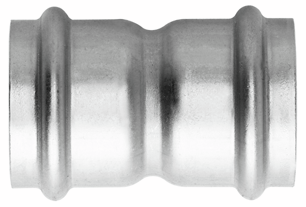

80020 Optipress-Aquaplus-Muffe
| Hauptwerkstoff | Edelstahl 1.4401 |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 95 °C |

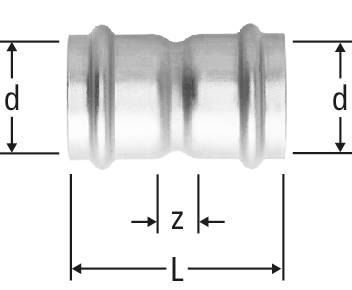

| d | z | L | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 12 | 56 | 0.4 | 15 | 80020.22 | 5 |
| 20 | 265.112,333.112 | ||||
|
|
|||||||||||||
| 18 | 11 | 55 | 0.2 | 18 | 80020.23 | 5 |
| 20 | 265.113,333.113 | ||||
|
|
|||||||||||||
| 22 | 13 | 59 | 0.2 | 22 | 80020.24 | 5 |
| 20 | 265.114,333.114 | ||||
|
|
|||||||||||||
| 28 | 12 | 60 | 0.2 | 28 | 80020.25 | 5 |
| 20 | 265.115,333.115 | ||||
|
|
|||||||||||||
| 35 | 12 | 64 | 0.2 | 35 | 80020.26 | 5 |
| 20 | 265.116,333.116 | ||||
|
|
|||||||||||||
| 42 | 12 | 85 | 0.1 | 42 | 80020.27 | 1 |
| 20 | 265.117,333.117 | ||||
|
|
|||||||||||||
| 54 | 12 | 93 | 0.1 | 54 | 80020.28 | 1 |
| 20 | 265.118,333.118 | ||||
|
|
|||||||||||||
| 64 | 24 | 110 | 0.1 | 64 | 80020.70 | 1 |
| 23 | - | ||||
|
|
|||||||||||||
| 76.1 | 25 | 125 | 0.1 | 76.1 | 80020.71 | 1 |
| 23 | 265.121,333.119 | ||||
|
|
|||||||||||||
| 88.9 | 25 | 125 | 0.1 | 88.9 | 80020.72 | 1 |
| 23 | 265.122,333.121 | ||||
|
|
|||||||||||||
| 108 | 25 | 145 | 0.1 | 108 | 80020.73 | 1 |
| 23 | 265.123,333.122 | ||||
|
|
|||||||||||||
CAD / BIM
| Beschreibung | Optipress-Aquaplus-Muffe |
| Grösse |
|
| Artikelnummer |
80020.22
|
