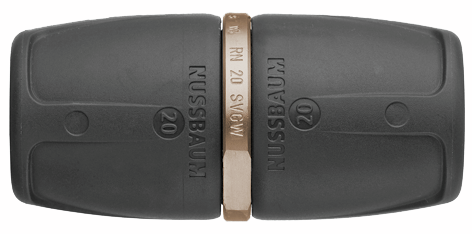

85136 Optiflex-Profix-Kupplung
| Hauptwerkstoff | Rotguss CC246E |
| Betriebsdruck max. | 10 bar |
| Nenndruck | PN 10 |
| Betriebstemperatur max. | 70 °C |

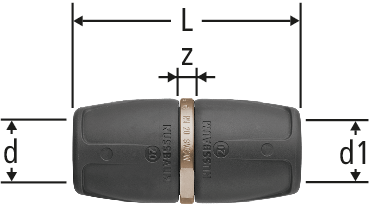

| d | d1 | z | L | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 16 | 5 | 73 | 0.3 | 16 x 16 | 85136.21 | 10 | 10 | 331.411 |
| ||||
|
|
||||||||||||||
| 20 | 20 | 5 | 73 | 0.2 | 20 x 20 | 85136.22 | 10 | 10 | 331.412 |
| ||||
|
|
||||||||||||||
| 20 | 16 | 5 | 73 | 0.7 | 20 x 16 | 85136.23 | 10 | 10 | 331.412 |
| ||||
|
|
||||||||||||||
| 25 | 25 | 5 | 90 | 0.1 | 25 x 25 | 85136.26 | 10 | 10 | 331.413 |
| ||||
|
|
||||||||||||||
| 25 | 20 | 5 | 82 | 1.0 | 25 x 20 | 85136.27 | 10 | 10 | 331.413 |
| ||||
|
|
||||||||||||||
CAD / BIM
| Beschreibung | Optiflex-Profix-Kupplung |
| Grösse |
|
| Artikelnummer |
85136.21
|
