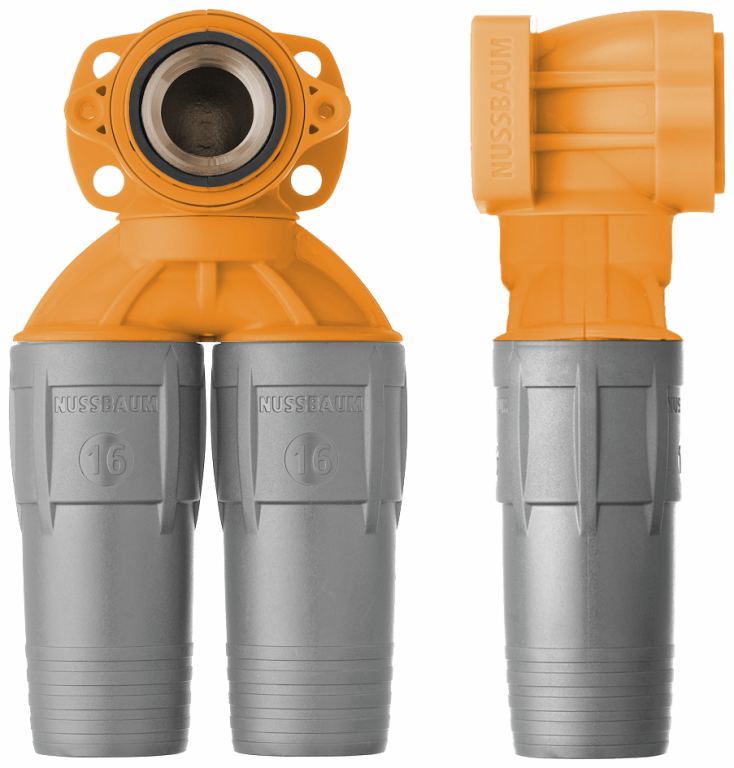

84117 Optiflex-Press-Doppeldose
für Mauerwerk, für Vorwandinstallation
Archiviertes Produkt
3-teilig, mit Dosenfuss flexibel, Anschlusswinkel schallentkoppelt
| Hauptwerkstoff | Rotguss |
| Sekundärwerkstoff | Kunststoff |

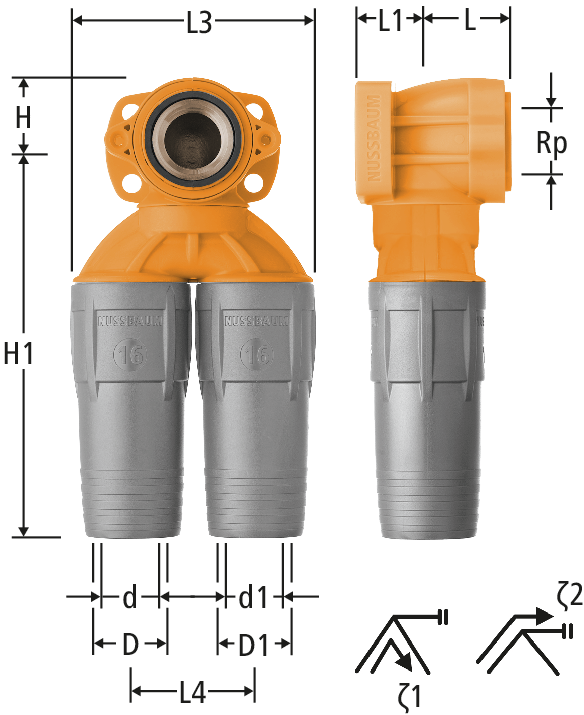

| Rp | d | d1 | D | D1 | L | L1 | L3 | L4 | H | H1 | ζ1 | ζ2 | Art.-Nr. | VE | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 16 | 16 | 25 | 25 | 29 | 22 | 83 | 42 | 20 | 132 | 5.5 | 5.6 | ½ x 16 x 16 | 84117.21 | 1 | - | nicht mehr bestellbar | ||||
|
|
|||||||||||||||||||||
| ½ | 20 | 16 | 28 | 25 | 29 | 22 | 83 | 42 | 20 | 132 | 3.4 | 3.3 | ½ x 20 x 16 | 84117.22 | 1 | - | nicht mehr bestellbar | ||||
|
|
|||||||||||||||||||||
| ½ | 20 | 20 | 28 | 28 | 29 | 22 | 83 | 42 | 20 | 132 | 3.5 | 3.3 | ½ x 20 x 20 | 84117.23 | 1 | - | nicht mehr bestellbar | ||||
|
|
|||||||||||||||||||||
CAD / BIM
| Beschreibung | Optiflex-Press-Doppeldose |
| Grösse |
|
| Artikelnummer |
84117.21
|
