91026 Optifitt-Serra-Reduktion
| Hauptwerkstoff | Rotguss CC499K |
| Oberflächenbehandlung | verchromt |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

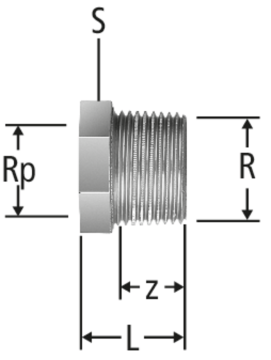

| Rp | R | z | L | S | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¼ | ⅜ | 7 | 17 | 18 | 2.4 | ⅜ x ¼ | 91026.71 | 5 |
| 01 | 214.531 | ||||
|
|
|||||||||||||||
| ⅜ | ½ | 12 | 22 | 24 | 2.4 | ½ x ⅜ | 91026.72 | 5 |
| 01 | 214.532 | ||||
|
|
|||||||||||||||
| ⅜ | ¾ | 13 | 23 | 27 | 2.4 | ¾ x ⅜ | 91026.73 | 5 |
| 01 | - | ||||
|
|
|||||||||||||||
| ½ | ¾ | 11 | 24 | 30 | 0.1 | ¾ x ½ | 91026.74 | 5 |
| 01 | 214.533 | ||||
|
|
|||||||||||||||
| ½ | 1 | 15 | 28 | 34 | 0.1 | 1 x ½ | 91026.75 | 5 |
| 01 | - | ||||
|
|
|||||||||||||||
| ¾ | 1 | 13 | 28 | 36 | 0.1 | 1 x ¾ | 91026.76 | 5 |
| 01 | 214.534 | ||||
|
|
|||||||||||||||
CAD / BIM
| Beschreibung | Optifitt-Serra-Reduktion |
| Grösse |
|
| Artikelnummer |
91026.71
|
