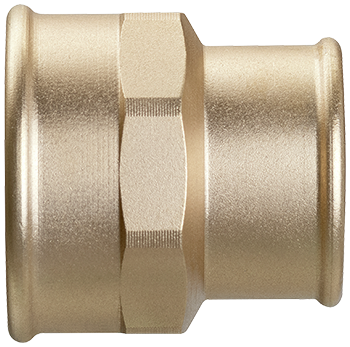

90022 Optifitt-Serra-Muffe reduziert
| Hauptwerkstoff | Rotguss CC499K |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

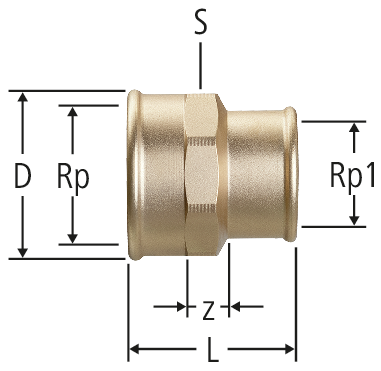

| Rp | Rp1 | D | z | L | S | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ⅜ | ¼ | 21 | 6 | 26 | 21 | 2.4 | ⅜ x ¼ | 90022.21 | 5 |
| 03 | 214.511 |
| ½ | ¼ | 28 | 8 | 31 | 26 | 2.4 | ½ x ¼ | 90022.20 | 5 |
| 03 | - |
| ½ | ⅜ | 28 | 8 | 31 | 26 | 2.4 | ½ x ⅜ | 90022.22 | 5 |
| 03 | 214.512 |
| ¾ | ⅜ | 32 | 9 | 34 | 31 | 2.4 | ¾ x ⅜ | 90022.23 | 5 |
| 03 | - |
| ¾ | ½ | 32 | 4 | 32 | 31 | 0.1 | ¾ x ½ | 90022.24 | 5 |
| 03 | 214.513 |
| 1 | ½ | 43 | 4 | 34 | 26 | 0.1 | 1 x ½ | 90022.25 | 5 |
| 03 | - |
| 1 | ¾ | 40 | 4 | 36 | 38 | 0.1 | 1 x ¾ | 90022.26 | 5 |
| 03 | 214.514 |
| 1¼ | ¾ | 52 | 14 | 48 | 47 | 0.1 | 1¼ x ¾ | 90022.27 | 5 |
| 03 | - |
| 1¼ | 1 | 50 | 13 | 49 | 47 | 0.1 | 1¼ x 1 | 90022.28 | 5 |
| 03 | 214.515 |
| 1½ | ¾ | 57 | 7 | 41 | 53 | 0.1 | 1½ x ¾ | 90022.29 | 1 |
| 03 | - |
| 1½ | 1 | 56 | 12 | 48 | 53 | 0.1 | 1½ x 1 | 90022.30 | 1 |
| 03 | - |
| 1½ | 1¼ | 56 | 9 | 47 | 53 | 0.1 | 1½ x 1¼ | 90022.31 | 1 |
| 03 | 214.516 |
| 2 | 1¼ | 71 | 8 | 50 | 66 | 0.1 | 2 x 1¼ | 90022.32 | 1 |
| 03 | - |
| 2 | 1½ | 70 | 4 | 47 | 66 | 0.1 | 2 x 1½ | 90022.33 | 1 |
| 03 | 214.517 |
| 2½ | 2 | 88 | 6 | 56 | 83 | 0.1 | 2½ x 2 | 90022.34 | 1 |
| 03 | 214.518 |
| 3 | 2 | 102 | 3 | 57 | 95 | 0.1 | 3 x 2 | 90022.35 | 1 |
| 51 | - |
| 3 | 2½ | 102 | 3 | 60 | 95 | 0.1 | 3 x 2½ | 90022.36 | 1 |
| 51 | - |
| 4 | 3 | 132 | 2 | 68 | 128 | 0.1 | 4 x 3 | 90022.37 | 1 |
| 51 | - |
CAD / BIM
| Beschreibung | Optifitt-Serra-Muffe reduziert |
| Grösse |
|
| Artikelnummer |
90022.21
|
