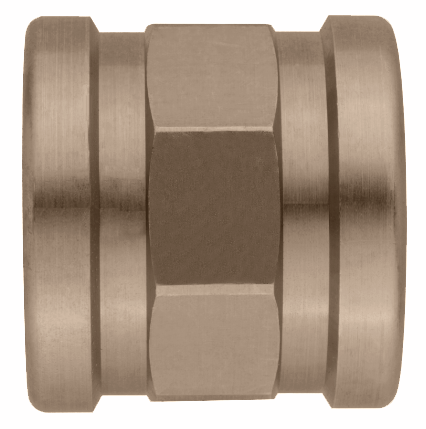

90021 Optifitt-Serra-Muffe
| Hauptwerkstoff | Rotguss CC499K |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

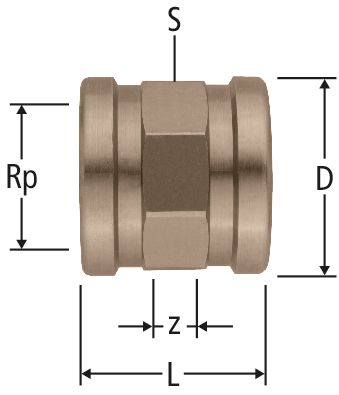

| Rp | D | L | S | ζ | Art.-Nr. | VE | z | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ¼ | 18 | 18 | 17 | 0.3 | ¼ | 90021.02 | 5 |
| 03 | - | |
| ⅜ | 22 | 23 | 21 | 0.3 | ⅜ | 90021.03 | 5 | 3 |
| 03 | 214.111 |
| ½ | 28 | 30 | 26 | 0.2 | ½ | 90021.04 | 5 | 4 |
| 03 | 214.112 |
| ¾ | 33 | 33 | 32 | 0.1 | ¾ | 90021.05 | 5 | 3 |
| 03 | 214.113 |
| 1 | 40 | 38 | 38 | 0.1 | 1 | 90021.06 | 5 | 4 |
| 03 | 214.114 |
| 1¼ | 50 | 43 | 47 | 0.1 | 1¼ | 90021.07 | 1 | 5 |
| 03 | 214.115 |
| 1½ | 57 | 43 | 54 | 0.1 | 1½ | 90021.08 | 1 | 5 |
| 03 | 214.116 |
| 2 | 70 | 59 | 66 | 0.1 | 2 | 90021.09 | 1 | 11 |
| 03 | 214.117 |
| 2½ | 88 | 61 | 83 | 0.1 | 2½ | 90021.10 | 1 | 7 |
| 03 | 214.118 |
| 3 | 107 | 70 | 104 | 0.1 | 3 | 90021.11 | 1 | 10 |
| 51 | - |
| 4 | 132 | 75 | 127 | 0.1 | 4 | 90021.12 | 1 | 3 |
| 51 | - |
