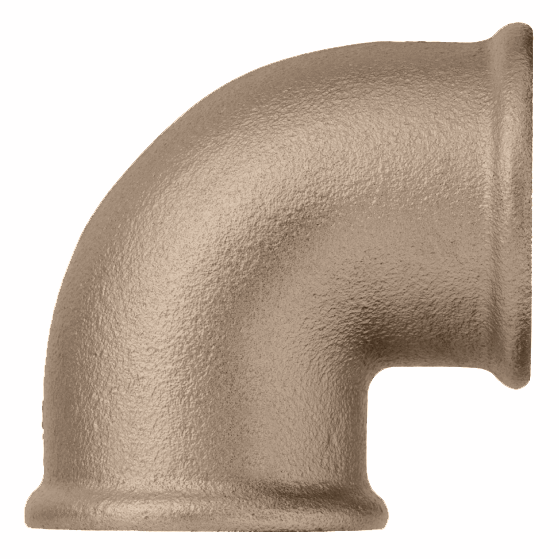

90001 Optifitt-Serra-Winkel
| Hauptwerkstoff | Rotguss CC499K |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

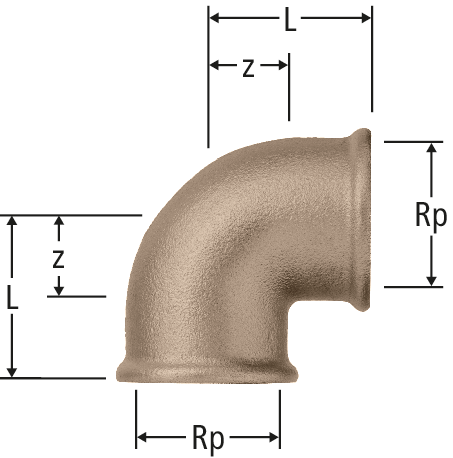

| Rp | z | L | ζ | Art.-Nr. | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|
| ¼ | 8 | 18 | 1.3 | ¼ | 90001.02 | 5 |
| 03 | - |
| ⅜ | 15 | 24 | 0.5 | ⅜ | 90001.03 | 5 |
| 03 | 212.511 |
| ½ | 17 | 30 | 0.8 | ½ | 90001.04 | 5 |
| 03 | 212.512 |
| ¾ | 15 | 30 | 1.3 | ¾ | 90001.05 | 5 |
| 03 | 212.513 |
| 1 | 21 | 38 | 0.8 | 1 | 90001.06 | 5 |
| 03 | 212.514 |
| 1¼ | 33 | 50 | 0.6 | 1¼ | 90001.07 | 1 |
| 03 | 212.515 |
| 1½ | 36 | 55 | 0.6 | 1½ | 90001.08 | 1 |
| 03 | 212.516 |
| 2 | 39 | 63 | 0.6 | 2 | 90001.09 | 1 |
| 03 | 212.517 |
| 2½ | 45 | 72 | 0.6 | 2½ | 90001.10 | 1 |
| 03 | 212.518 |
CAD / BIM
| Beschreibung | Optifitt-Serra-Winkel |
| Grösse |
|
| Artikelnummer |
90001.02
|
