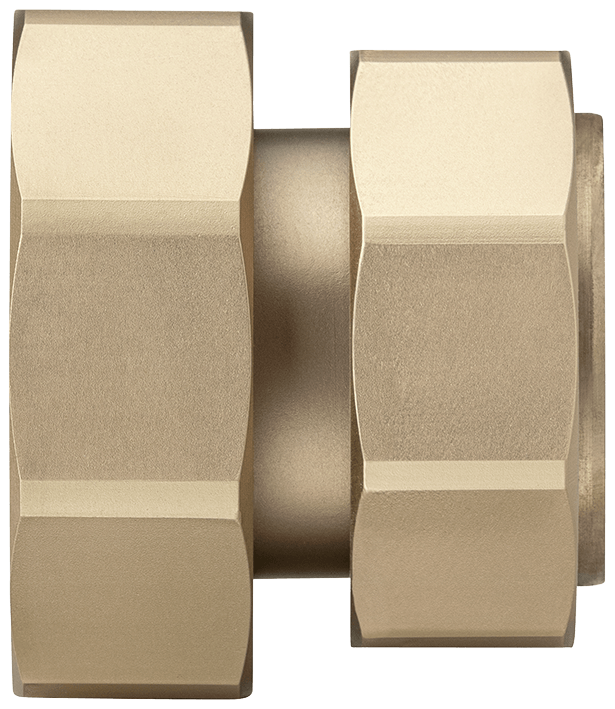

22170 Anschlussverschraubung
mit Schnellverschraubung
zu Batterieventil mit Schnellverschraubungsanschluss
| Hauptwerkstoff | Rotguss CC246E |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

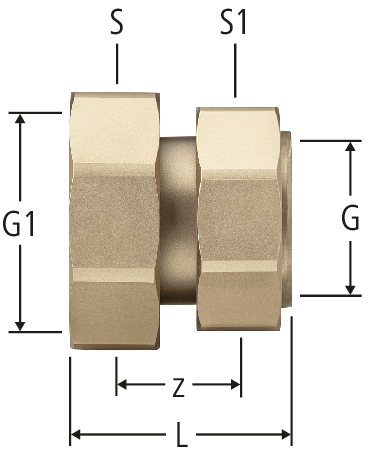

| G | G1 | z | L | S | S1 | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1¼ | 1¼ | 35 | 58 | 46 | 46 | 0.1 | 1¼ x 1¼ | 22170.25 | 01 | 1 | 215.155 |
| ||||
|
|
||||||||||||||||
| 1¼ | 1½ | 34 | 56 | 52 | 46 | 0.1 | 1¼ x 1½ | 22170.27 | 01 | 1 | 215.155 |
| ||||
|
|
||||||||||||||||
| 2 | 1¾ | 34 | 58 | 60 | 66 | 0.1 | 2 x 1¾ | 22170.29 | 01 | 1 | 215.157 |
| ||||
|
|
||||||||||||||||
| 2 | 2⅜ | 41 | 71 | 76 | 66 | 0.1 | 2 x 2⅜ | 22170.31 | 01 | 1 | 215.157 |
| ||||
|
|
||||||||||||||||
| 2½ | 3 | 47 | 79 | 96 | 82 | 0.1 | 2½ x 3 | 22170.33 | 01 | 1 | 215.158 |
| ||||
|
|
||||||||||||||||
