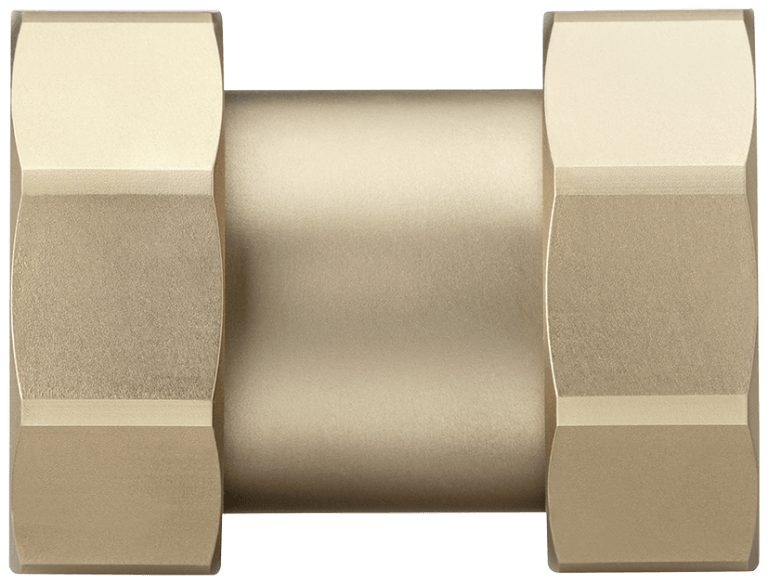

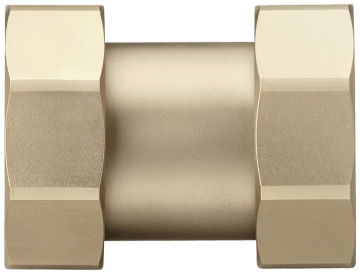

22165 Doppelnippel
mit Schnellverschraubung
zu Batterieventil mit Schnellverschraubungsanschluss
| Hauptwerkstoff | Rotguss CC246E |
| Betriebsdruck max. | 16 bar |
| Nenndruck | PN 16 |
| Betriebstemperatur max. | 90 °C |

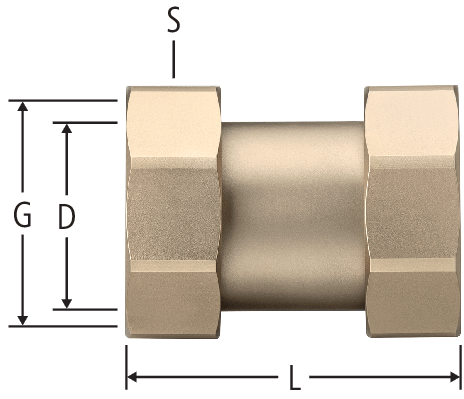

| G | D | L | S | ζ | Art.-Nr. | RK | VE | suissetec NPK426 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1¼ | 33 | 88 | 46 | 0.1 | 1¼ | 22165.22 | 01 | 1 | 214.375 |
| ||||
|
|
||||||||||||||
| 2 | 50 | 86 | 66 | 0.1 | 2 | 22165.23 | 01 | 1 | 214.377 |
| ||||
|
|
||||||||||||||
| 2½ | 64 | 66 | 82 | 0.1 | 2½ | 22165.24 | 01 | 1 | 214.378 |
| ||||
|
|
||||||||||||||
Hinweis
Andere Längen auf Anfrage.
