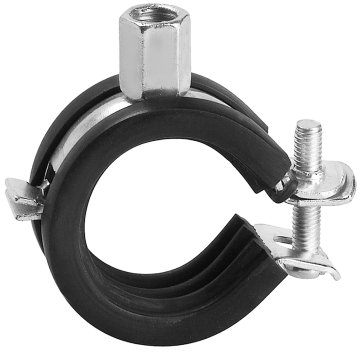

83070 Collier

83070 Collier
avec filetage M

Info

avec caoutchouc

matériau principal

acier

Variantes de produits

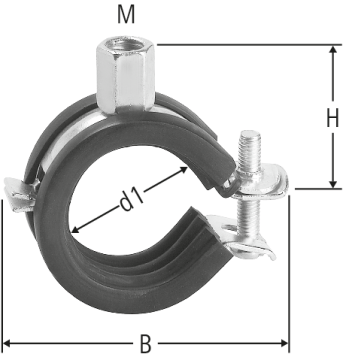

Légende

GN	M	d1 min	d1 max	H	B		Art. n°	VE	CHF	suissetec	Commander	Pièces de rechange et accessoires
15 / 18 15 / 18	½	M8 / M10	15	20	32	48	15 / 18	83070.23	5	20	821.212,821.212	83070.23 Commander pcs.	Afficher

22 22	¾	M8 / M10	20	24	33	52	22	83070.24	5	20	821.213,821.213	83070.24 Commander pcs.	Afficher

28 28	1	M8 / M10	25	30	37	57	28	83070.25	5	20	821.214,821.214	83070.25 Commander pcs.	Afficher

35 35	1¼	M8 / M10	31	35	40	65	35	83070.26	5	20	821.215,821.215	83070.26 Commander pcs.	Afficher

42 42	1½	M8 / M10	40	43	46	73	42	83070.27	5	20	821.216,821.216	83070.27 Commander pcs.	Afficher

50 50	2	M8 / M10	48	51	41	81	50	83070.33	5	20	-	83070.33 Commander pcs.	Afficher

54 54	2	M8 / M10	53	59	32	88	54	83070.28	5	20	821.217,821.217	83070.28 Commander pcs.	Afficher

64 64		M8 / M10	60	66	56	97	64	83070.32	1	20	-	83070.32 Commander pcs.	Afficher

76.1 76.1	2½	M8 / M10	73	77	68	122	76.1	83070.29	1	20	821.218,821.218	83070.29 Commander pcs.	Afficher

88.9 88.9	3	M8 / M10	83	90	68	132	88.9	83070.30	1	20	821.221,821.221	83070.30 Commander pcs.	Afficher

108 108	4	M8 / M10	108	115	73	152	108	83070.31	1	20	821.222,821.222	83070.31 Commander pcs.	Afficher
