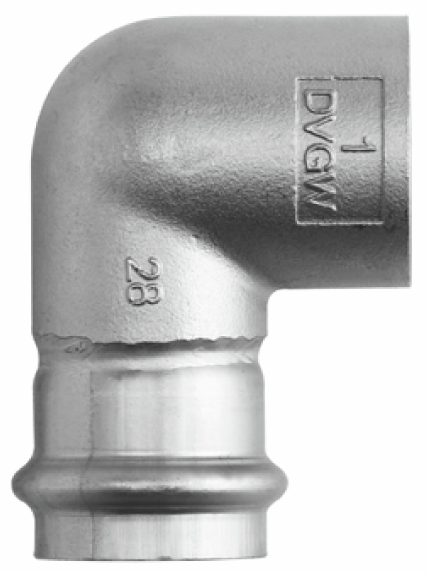

80306 Optipress-Industry-Équerre
avec filetage femelle
| matériau principal | acier inoxydable 1.4301 |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| température de fonctionnement max. | 95 °C |

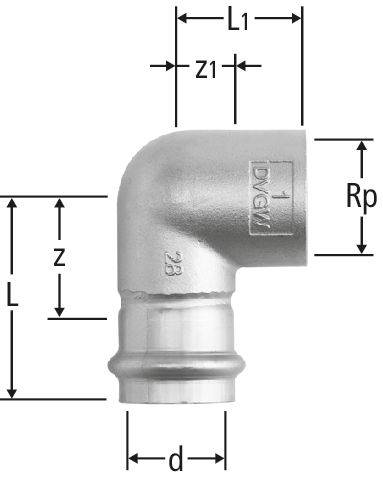

| Rp | d | z | z1 | L | L1 | ζ | Art. n° | RK | VE | suissetec NPK453 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 15 | 24 | 13 | 46 | 26 | 1.6 | 15 x ½ | 80306.23 | 22 | 1 | 335.421 |
| ||||
|
|
||||||||||||||||
| ½ | 22 | 24 | 15 | 47 | 28 | 1.6 | 22 x ½ | 80306.24 | 22 | 1 |
| |||||
|
|
||||||||||||||||
| ¾ | 22 | 26 | 15 | 49 | 30 | 1.6 | 22 x ¾ | 80306.25 | 22 | 1 | 335.423 |
| ||||
|
|
||||||||||||||||
| ½ | 28 | 22 | 18 | 46 | 31 | 1.3 | 28 x ½ | 80306.26 | 22 | 1 | 335.424 |
| ||||
|
|
||||||||||||||||
| ¾ | 28 | 34 | 14 | 58 | 27 | 1.3 | 28 x ¾ | 80306.27 | 22 | 1 |
| |||||
|
|
||||||||||||||||
| 1 | 28 | 32 | 19 | 56 | 36 | 1.3 | 28 x 1 | 80306.28 | 22 | 1 | 335.424 |
| ||||
|
|
||||||||||||||||
CAO / BIM
| Description | Optipress-Industry-Équerre |
| Taille |
|
| Numéro d’article |
80306.23
|
