15030 Clapet anti-retour Stop-Silent

 retour

15030 Clapet anti-retour Stop-Silent

avec bride

Produit ancien

Info
matériau principal bronze CC499K
pression de fonctionnement max. 16 bar
pression nominale PN 16
température de service max. 90 °C
fluides eau
norme de bride EN 1092 - PN 16

Variantes de produits

Légende

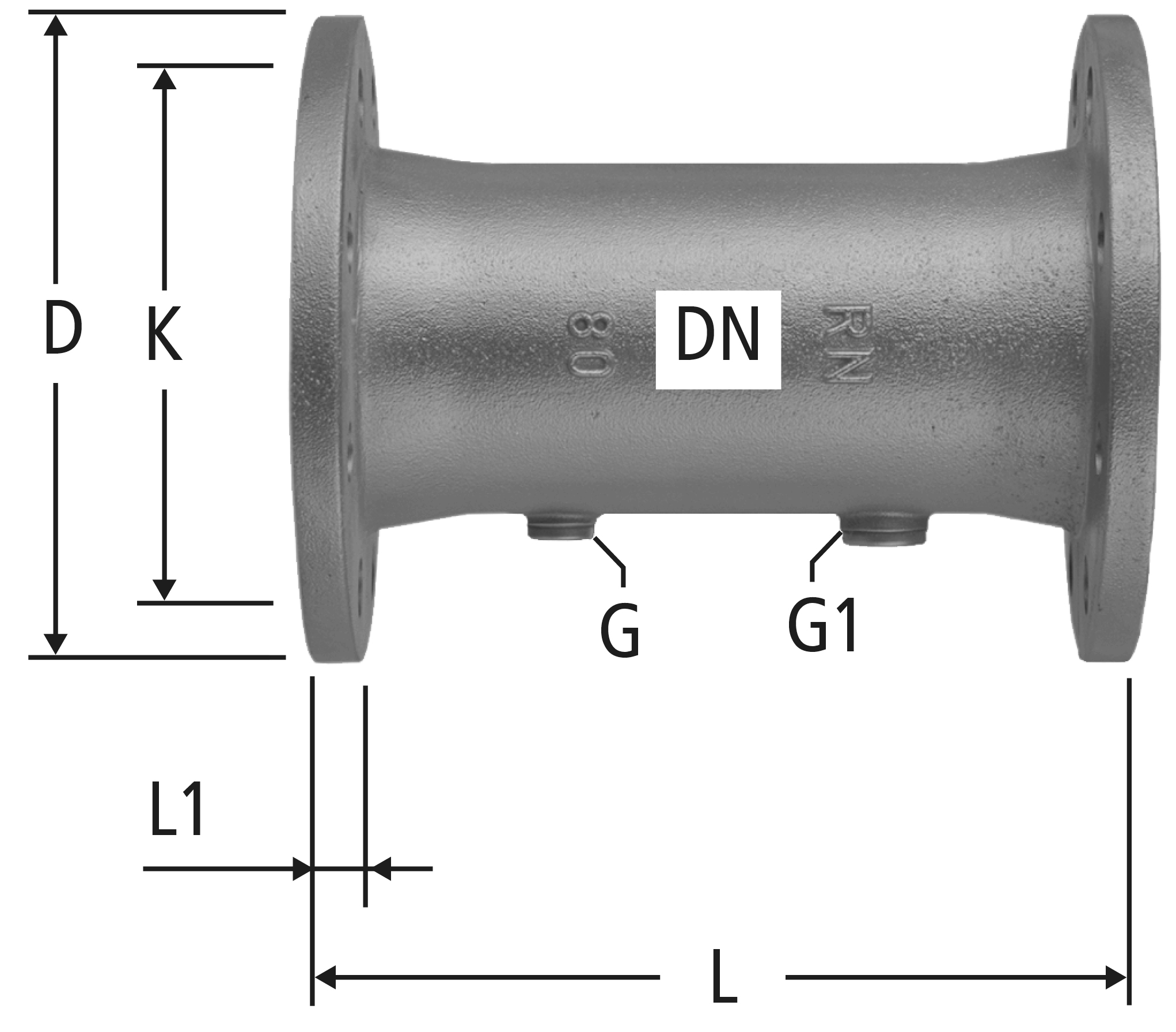

DN G G1 D L L1 N K Art. n° RK suissetec Commander Pièces de rechange et accessoires
50 50 50 ¼ ⅜ 165 200 16 4x Ø18 125 50 15030.21 - plus disponible Afficher
65 65 65 ¼ ⅜ 185 240 16 4x Ø18 145 65 15030.22 - plus disponible Afficher
80 80 80 ⅜ ½ 200 260 18 8x Ø18 160 80 15030.23 - plus disponible Afficher
100 100 100 ⅜ ½ 220 300 20 8x Ø18 180 100 15030.24 - plus disponible Afficher
Indication

N = nombre de trous x diamètre

CAO / BIM

Description Clapet anti-retour Stop-Silent
Taille
Numéro d’article
15030.21
