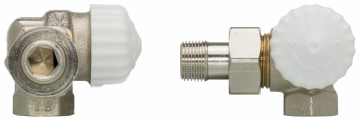

55229 Thermostat-Ventilunterteil V-exact
Winkeleck rechts
mit Voreinstellung, Bauschutzkappe weiss
| Hauptwerkstoff | Rotguss |
| Oberflächenbehandlung | vernickelt |
| Betriebsdruck max. | 10 bar |
| Nenndruck | PN 10 |
| Betriebstemperatur max. | 120 °C |

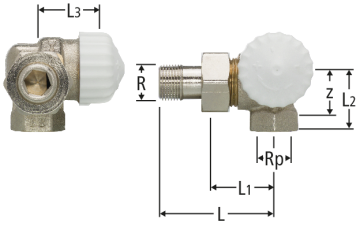

| Rp | R | z | L | L1 | L2 | L3 | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ½ | 19 | 58 | 29 | 26 | 22 | ½ | 55229.22 | 1 |
| 34 | - | ||||
|
|
||||||||||||||||
CAD / BIM
| Beschreibung | Thermostat-Ventilunterteil V-exact |
| Grösse |
|
| Artikelnummer |
55229.22
|
