40086 Verlängerungsrohr mit Eckgehäuse
zu Gartenventil frostsicher
| Hauptwerkstoff | Rotguss CC246E |

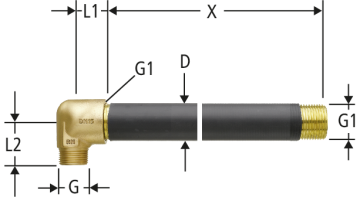

| G | G1 | D | L1 | L2 | X min | X max | Art.-Nr. | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¾ | 1 | 35 | 29 | 39 | 100 | 300 | ¾ x 100-300 | 40086.71 | 1 |
| 01 | - | ||||
|
|
||||||||||||||||
| ¾ | 1 | 35 | 29 | 39 | 250 | 500 | ¾ x 250-500 | 40086.72 | 1 |
| 01 | - | ||||
|
|
||||||||||||||||
| ¾ | 1 | 35 | 29 | 39 | 450 | 750 | ¾ x 450-750 | 40086.75 | 1 |
| 01 | - | ||||
|
|
||||||||||||||||
| ¾ | 1 | 35 | 29 | 39 | 750 | 1000 | ¾ x 750-1000 | 40086.77 | 1 |
| 01 | - | ||||
|
|
||||||||||||||||
Hinweis
G = direkter Anschluss mit Optiflex 84250, 85150 oder 86005 möglich.
CAD / BIM
| Beschreibung | Verlängerungsrohr mit Eckgehäuse |
| Grösse |
|
| Artikelnummer |
40086.71
|
