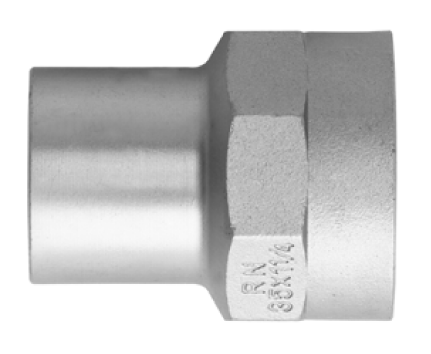

80334 Optipress-Industry-Pièce intermédiaire
avec embout à sertir mâle, avec filetage femelle
| matériau principal | acier inoxydable 1.4301 |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| température de fonctionnement max. | 95 °C |

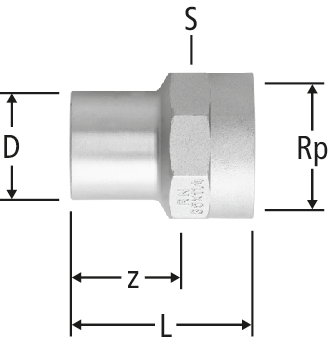

| Rp | D | z | L | S | ζ | Art. n° | CHF | RK | VE | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 15 | 38 | 53 | 26 | 0.4 | 15 x ½ | 80334.22 |
| 22 | 1 | - |
| ½ | 18 | 38 | 53 | 26 | 0.2 | 18 x ½ | 80334.23 |
| 22 | 1 | - |
| ¾ | 18 | 38 | 55 | 33 | 0.2 | 18 x ¾ | 80334.24 |
| 22 | 1 | - |
| ½ | 22 | 39 | 54 | 26 | 0.2 | 22 x ½ | 80334.25 |
| 22 | 1 | - |
| ¾ | 22 | 39 | 55 | 33 | 0.2 | 22 x ¾ | 80334.26 |
| 22 | 1 | - |
| 1 | 28 | 40 | 59 | 40 | 0.2 | 28 x 1 | 80334.27 |
| 22 | 1 | - |
CAO / BIM
| Description | Optipress-Industry-Pièce intermédiaire |
| Taille |
|
| Numéro d’article |
80334.22
|
