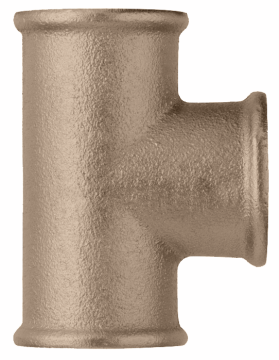

90011 Optifitt-Serra-Té
| matériau principal | bronze CC499K |
| pression nominale | PN 16 |
| température de service max. | 90 °C |

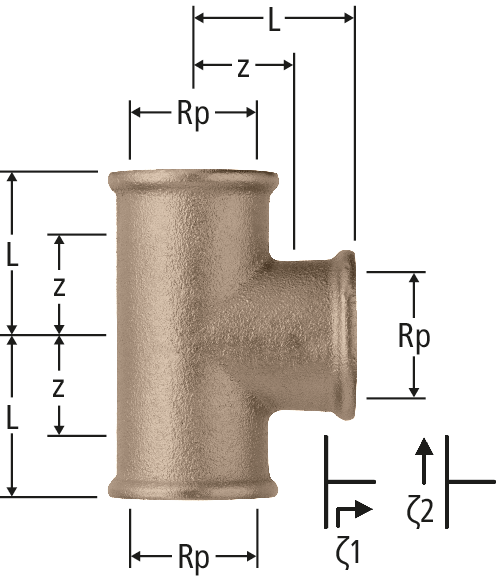

| Rp | z | L | ζ1 | ζ2 | Art. n° | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|
| ¼ | 8 | 18 | 1.3 | 0.6 | ¼ | 90011.02 | 1 |
| 03 | - |
| ⅜ | 12 | 22 | 1.3 | 0.6 | ⅜ | 90011.03 | 5 |
| 03 | 213.111 |
| ½ | 12 | 25 | 1.3 | 0.4 | ½ | 90011.04 | 5 |
| 03 | 213.112 |
| ¾ | 15 | 30 | 1.3 | 0.3 | ¾ | 90011.05 | 5 |
| 03 | 213.113 |
| 1 | 23 | 40 | 1.3 | 0.3 | 1 | 90011.06 | 1 |
| 03 | 213.114 |
| 1¼ | 26 | 45 | 1.0 | 0.2 | 1¼ | 90011.07 | 1 |
| 03 | 213.115 |
| 1½ | 35 | 54 | 0.9 | 0.2 | 1½ | 90011.08 | 1 |
| 03 | 213.116 |
| 2 | 38 | 61 | 0.8 | 0.1 | 2 | 90011.09 | 1 |
| 03 | 213.117 |
| 2½ | 42 | 69 | 0.8 | 0.1 | 2½ | 90011.10 | 1 |
| 03 | 213.118 |
CAO / BIM
| Description | Optifitt-Serra-Té |
| Taille |
|
| Numéro d’article |
90011.02
|
