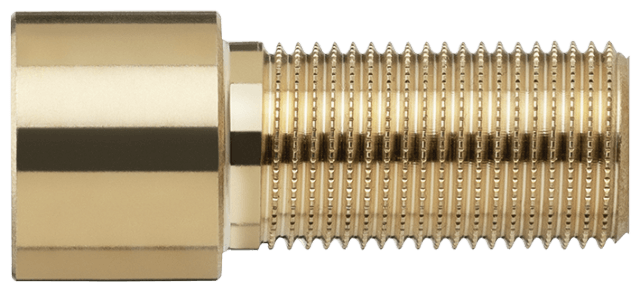

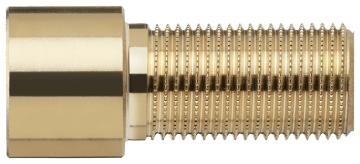

90034 Optifitt-Serra-Prolonge
raccourcissable
| matériau principal | bronze CC246E |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| température de fonctionnement max. | 90 °C |

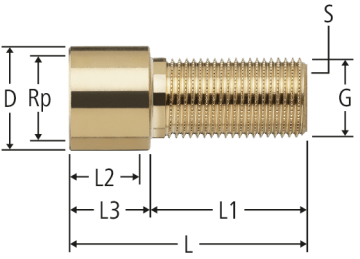

| Rp | G | D | L | L1 | L2 | L3 | S | ζ | Art. n° | RK | VE | CHF | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ½ | 27 | 61 | 40 | 19 | 21 | 12 | 0.2 | ½ x 40 | 90034.21 | 03 | 5 |
|
Indication
S = six pans intérieurs
CAO / BIM
| Description | Optifitt-Serra-Prolonge |
| Taille |
|
| Numéro d’article |
90034.21
|
