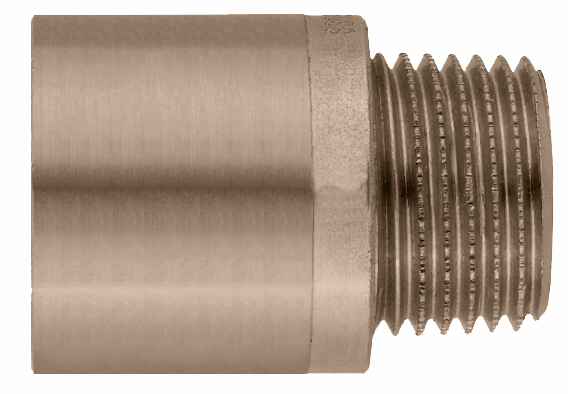

90033 Optifitt-Serra-Prolonge

Info

matériau principal	bronze CC499K
pression nominale	PN 16
température de service max.	90 °C

Variantes de produits

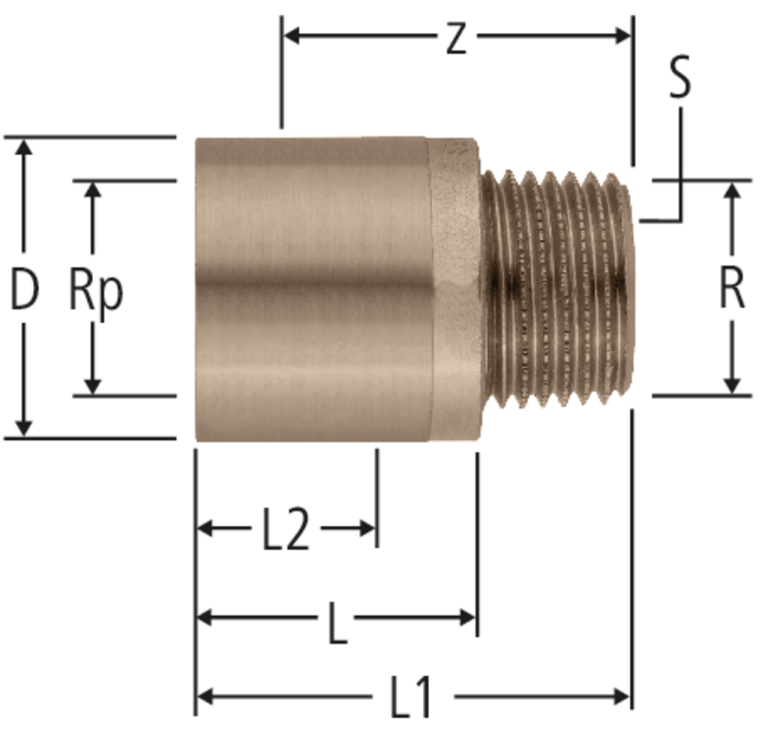

Légende

Rp	R	D	z	L	L1	L2	S	ζ		Art. n°	VE	CHF	suissetec	Commander
⅜ x 15 ⅜ x 15	⅜	⅜	22	15	15	27		10	0.3	⅜ x 15	90033.14	5	03	-	90033.14 Commander pcs.
⅜ x 20 ⅜ x 20	⅜	⅜	22		20	32	15	10	0.3	⅜ x 20	90033.15	5	03	-	90033.15 Commander pcs.
⅜ x 25 ⅜ x 25	⅜	⅜	22		25	37	19	10	0.3	⅜ x 25	90033.16	5	03	-	90033.16 Commander pcs.
⅜ x 30 ⅜ x 30	⅜	⅜	22		30	42	24	10	0.3	⅜ x 30	90033.17	5	03	-	90033.17 Commander pcs.
⅜ x 40 ⅜ x 40	⅜	⅜	22		40	52	36	10	0.3	⅜ x 40	90033.18	5	03	214.411	90033.18 Commander pcs.
⅜ x 50 ⅜ x 50	⅜	⅜	22		50	62	46	10	0.3	⅜ x 50	90033.19	5	03	-	90033.19 Commander pcs.
½ x 12.5 ½ x 12.5	½	½	27		12.5	28		12	0.2	½ x 12.5	90033.22	5	03	-	90033.22 Commander pcs.
½ x 15 ½ x 15	½	½	27		15	31		12	0.2	½ x 15	90033.23	5	03	-	90033.23 Commander pcs.
½ x 17.5 ½ x 17.5	½	½	27	18	17.5	33		12	0.2	½ x 17.5	90033.24	5	03	-	90033.24 Commander pcs.
½ x 20 ½ x 20	½	½	27	20	20	36		12	0.2	½ x 20	90033.26	5	03	-	90033.26 Commander pcs.
½ x 25 ½ x 25	½	½	27		25	41	19	12	0.2	½ x 25	90033.27	5	03	-	90033.27 Commander pcs.
½ x 30 ½ x 30	½	½	27		30	46	24	12	0.2	½ x 30	90033.28	5	03	-	90033.28 Commander pcs.
½ x 40 ½ x 40	½	½	27		40	56	34	12	0.2	½ x 40	90033.29	5	03	214.412	90033.29 Commander pcs.
½ x 50 ½ x 50	½	½	27		50	66	45	12	0.2	½ x 50	90033.30	5	03	-	90033.30 Commander pcs.
½ x 65 ½ x 65	½	½	27		65	81	59	12	0.2	½ x 65	90033.40	5	03	-	90033.40 Commander pcs.
½ x 80 ½ x 80	½	½	27		80	96	67	12	0.2	½ x 80	90033.41	5	03	-	90033.41 Commander pcs.
½ x 100 ½ x 100	½	½	27		100	116	55	12	0.2	½ x 100	90033.42	5	03	-	90033.42 Commander pcs.
¾ x 20 ¾ x 20	¾	¾	32	20	20	37		17	0.1	¾ x 20	90033.34	5	03	-	90033.34 Commander pcs.
¾ x 25 ¾ x 25	¾	¾	32	25	25	42		17	0.1	¾ x 25	90033.45	5	03	-	90033.45 Commander pcs.
¾ x 30 ¾ x 30	¾	¾	32		30	47	24	17	0.1	¾ x 30	90033.35	5	03	-	90033.35 Commander pcs.
¾ x 40 ¾ x 40	¾	¾	32		40	57	34	17	0.1	¾ x 40	90033.36	5	03	214.413	90033.36 Commander pcs.
¾ x 50 ¾ x 50	¾	¾	32		50	67	45	17	0.1	¾ x 50	90033.37	5	03	-	90033.37 Commander pcs.
¾ x 65 ¾ x 65	¾	¾	32		65	82	60	17	0.1	¾ x 65	90033.46	5	03	-	90033.46 Commander pcs.
¾ x 80 ¾ x 80	¾	¾	32		80	97	60	17	0.1	¾ x 80	90033.47	5	03	-	90033.47 Commander pcs.
¾ x 100 ¾ x 100	¾	¾	32		100	117	55	17	0.1	¾ x 100	90033.48	5	03	-	90033.48 Commander pcs.
1 x 25 1 x 25	1	1	39	28	25	45		22	0.1	1 x 25	90033.50	5	03	-	90033.50 Commander pcs.
1 x 30 1 x 30	1	1	39	33	30	50		22	0.1	1 x 30	90033.51	5	03	-	90033.51 Commander pcs.
1 x 40 1 x 40	1	1	39		40	60	34	22	0.1	1 x 40	90033.52	5	03	214.414	90033.52 Commander pcs.
1 x 50 1 x 50	1	1	39		50	70	44	22	0.1	1 x 50	90033.53	5	03	-	90033.53 Commander pcs.

Indication

S = six pans intérieurs
