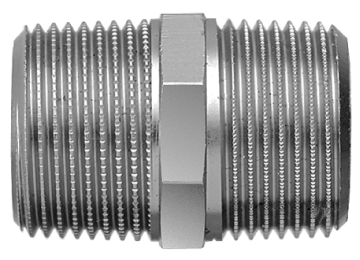

91020 Optifitt-Serra-Mamelon double
| matériau principal | bronze CC499K |
| traitement de surface | chromé |
| pression nominale | PN 16 |
| température de service max. | 90 °C |

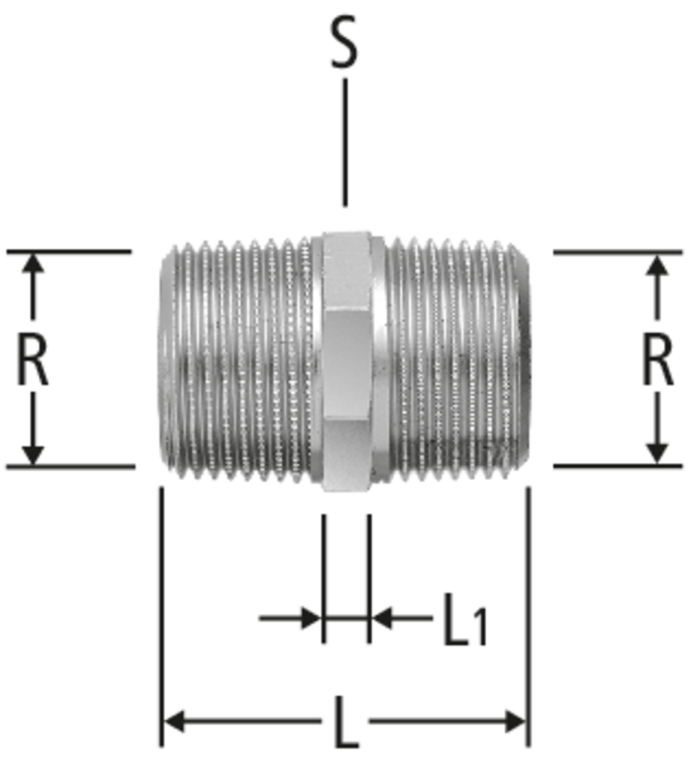

| R | L | L1 | S | ζ | Art. n° | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¼ | 20 | 4 | 14 | 0.3 | ¼ | 91020.52 | 5 |
| 01 | - | ||||
|
|
||||||||||||||
| ⅜ | 29 | 5 | 18 | 0.3 | ⅜ | 91020.53 | 5 |
| 01 | 214.311 | ||||
|
|
||||||||||||||
| ½ | 37 | 6 | 22 | 0.2 | ½ | 91020.54 | 5 |
| 01 | 214.312 | ||||
|
|
||||||||||||||
| ¾ | 40 | 6 | 27 | 0.1 | ¾ | 91020.55 | 5 |
| 01 | 214.313 | ||||
|
|
||||||||||||||
CAO / BIM
| Description | Optifitt-Serra-Mamelon double |
| Taille |
|
| Numéro d’article |
91020.52
|
