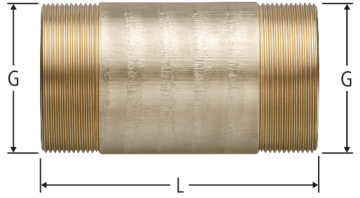

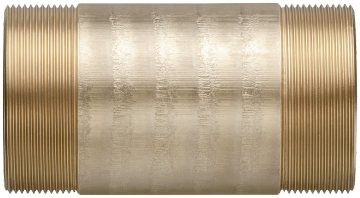

90206 Optifitt-Serra-Mamelon G 2½
lors de la commande, veuillez indiquer la mesure L (longueur) dans le champs de commentaires
| matériau principal | bronze CC499K |
| pression nominale | PN 16 |
| température de service max. | 90 °C |
| G | L min | L max | ζ | Art. n° | VE | L | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2½ | 55 | 80 | 0.1 | 2½ x 55-80 | 90206.01 | 1 |
| 51 | - | |
| 2½ | 81 | 120 | 0.1 | 2½ x 81-120 | 90206.02 | 1 |
| 51 | - | |
| 2½ | 121 | 160 | 0.1 | 2½ x 121-160 | 90206.03 | 1 |
| 51 | - | |
| 2½ | 161 | 200 | 0.1 | 2½ x 161-200 | 90206.04 | 1 |
| 51 | - | |
| 2½ | 201 | 250 | 0.1 | 2½ x 201-250 | 90206.05 | 1 |
| 51 | - | |
| 2½ | 251 | 300 | 0.1 | 2½ x 251-300 | 90206.06 | 1 |
| 51 | - | |
| 2½ | 301 | 350 | 0.1 | 2½ x 301-350 | 90206.07 | 1 |
| 51 | - | |
| 2½ | 351 | 400 | 0.1 | 2½ x 351-400 | 90206.08 | 1 |
| 51 | - | |
| 2½ | 401 | 450 | 0.1 | 2½ x 401-450 | 90206.09 | 1 |
| 51 | - | |
| 2½ | 451 | 500 | 0.1 | 2½ x 451-500 | 90206.10 | 1 |
| 51 | - | |
| 2½ | 0.1 | 2½ x 70 | 90206.11 | 1 | 70 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 78 | 90206.12 | 1 | 78 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 80 | 90206.13 | 1 | 80 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 90 | 90206.14 | 1 | 90 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 110 | 90206.15 | 1 | 110 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 120 | 90206.16 | 1 | 120 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 130 | 90206.17 | 1 | 130 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 150 | 90206.18 | 1 | 150 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 162 | 90206.19 | 1 | 162 |
| 51 | - | ||
| 2½ | 0.1 | 2½ x 200 | 90206.20 | 1 | 200 |
| 51 | - |
CAO / BIM
| Description | Optifitt-Serra-Mamelon G 2½ |
| Taille |
|
| Numéro d’article |
90206.01
|
