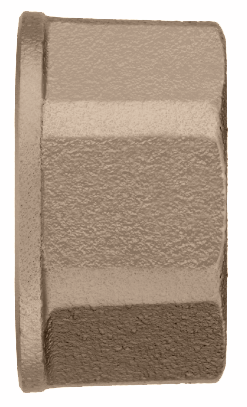

90038 Optifitt-Serra-Cape de fermeture
| matériau principal | bronze CC499K |
| pression nominale | PN 16 |
| température de service max. | 90 °C |
| Rp | D | L | S | Art. n° | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|
| ¼ | 24 | 12 | 20 | ¼ | 90038.02 | 5 |
| 03 | - |
| ⅜ | 27 | 16 | 22 | ⅜ | 90038.03 | 5 |
| 03 | 216.131 |
| ½ | 29 | 20 | 24 | ½ | 90038.04 | 5 |
| 03 | 216.132 |
| ¾ | 36 | 21 | 30 | ¾ | 90038.05 | 5 |
| 03 | 216.133 |
| 1 | 42 | 29 | 38 | 1 | 90038.06 | 5 |
| 03 | 216.134 |
| 1¼ | 52 | 30 | 47 | 1¼ | 90038.07 | 1 |
| 03 | 216.135 |
| 1½ | 60 | 30 | 53 | 1½ | 90038.08 | 1 |
| 03 | 216.136 |
| 2 | 73 | 33 | 66 | 2 | 90038.09 | 1 |
| 03 | 216.137 |
CAO / BIM
| Description | Optifitt-Serra-Cape de fermeture |
| Taille |
|
| Numéro d’article |
90038.02
|
