81083 Optipress-Tuyau cintré 30°

Name: Optipress-Tuyau cintré 30°
Brand: Nussbaum
SKU: 81083
Price: 13.2 CHF
Availability: InStock

Info

PN 16.0

Variantes de produits

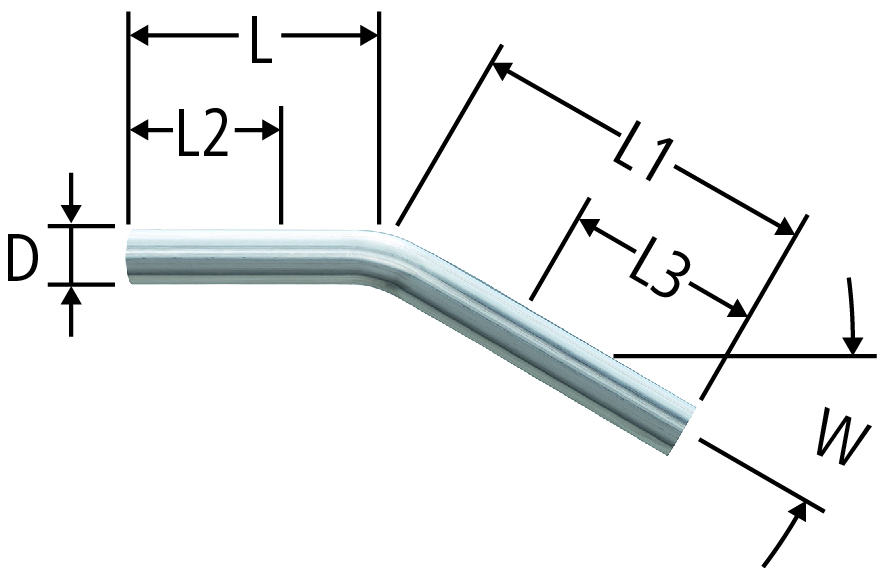

Légende

L	L1	L2	L3	D	W	ζ		N° d'art.	CHF	VE	suissetec	Commander
15 x 30° 15 x 30°	80	135	44	99	15	30°	3.3	15 x 30°	81083.32	20	1	262.312	81083.32 Commander pcs.
18 x 30° 18 x 30°	90	133	52	95	18	30°	2.8	18 x 30°	81083.33	20	1	262.313	81083.33 Commander pcs.
22 x 30° 22 x 30°	100	130	60	90	22	30°	2.6	22 x 30°	81083.34	20	1	262.314	81083.34 Commander pcs.
28 x 30° 28 x 30°	110	134	67	91	28	30°	2.2	28 x 30°	81083.35	20	1	262.315	81083.35 Commander pcs.
35 x 30° 35 x 30°	130	164	81	115	35	30°	2.0	35 x 30°	81083.36	20	1	262.316	81083.36 Commander pcs.
42 x 30° 42 x 30°	170	209	102	141	42	30°	1.9	42 x 30°	81083.37	20	1	262.317	81083.37 Commander pcs.
54 x 30° 54 x 30°	220	249	141	170	54	30°	1.9	54 x 30°	81083.38	20	1	262.318	81083.38 Commander pcs.
76.1 x 30° 76.1 x 30°	360	360	195	195	76.1	30°	2.9	76.1 x 30°	81083.39	23	1	262.321	81083.39 Commander pcs.
88.9 x 30° 88.9 x 30°	416	416	260	260	88.9	30°	1.7	88.9 x 30°	81083.40	23	1	262.322	81083.40 Commander pcs.
108 x 30° 108 x 30°	484	484	175	175	108	30°	1.1	108 x 30°	81083.41	23	1	262.323	81083.41 Commander pcs.

Indication

L2, L3 = Longueurs maximales de raccourcissement
