80022 Optipress-Aquaplus-Manchon de transformation
| matériau principal | acier inoxydable 1.4401 |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| température de fonctionnement max. | 95 °C |

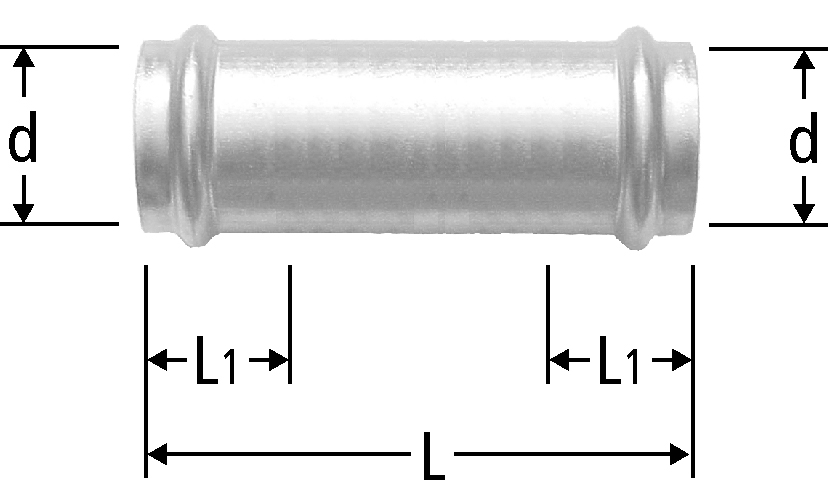

| d | L | L1 | ζ | Art. n° | RK | VE | suissetec NPK426 | suissetec NPK453 | CHF | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 80 | 22 | 0.4 | 15 | 80022.22 | 20 | 5 | 265.212 | 333.132 |
| ||||
|
|
||||||||||||||
| 18 | 80 | 22 | 0.2 | 18 | 80022.23 | 20 | 5 | 265.213 | 333.133 |
| ||||
|
|
||||||||||||||
| 22 | 80 | 23 | 0.2 | 22 | 80022.24 | 20 | 5 | 265.214 | 333.134 |
| ||||
|
|
||||||||||||||
| 28 | 95 | 24 | 0.2 | 28 | 80022.25 | 20 | 5 | 265.215 | 333.135 |
| ||||
|
|
||||||||||||||
| 35 | 105 | 26 | 0.2 | 35 | 80022.26 | 20 | 5 | 265.216 | 333.136 |
| ||||
|
|
||||||||||||||
| 42 | 120 | 36 | 0.1 | 42 | 80022.27 | 20 | 5 | 265.217 | 333.137 |
| ||||
|
|
||||||||||||||
| 54 | 136 | 40 | 0.1 | 54 | 80022.28 | 20 | 1 | 265.218 | 333.138 |
| ||||
|
|
||||||||||||||
| 64 | 110 | 43 | 0.1 | 64 | 80022.70 | 23 | 1 |
| ||||||
|
|
||||||||||||||
| 76.1 | 125 | 50 | 0.1 | 76.1 | 80022.71 | 23 | 1 | 265.221 | 333.139 |
| ||||
|
|
||||||||||||||
| 88.9 | 125 | 50 | 0.1 | 88.9 | 80022.72 | 23 | 1 | 265.222 | 333.141 |
| ||||
|
|
||||||||||||||
| 108 | 145 | 60 | 0.1 | 108 | 80022.73 | 23 | 1 | 265.223 | 333.142 |
| ||||
|
|
||||||||||||||
Indication
L1 = emboîtement minimal
CAO / BIM
| Description | Optipress-Aquaplus-Manchon de transformation |
| Taille |
|
| Numéro d’article |
80022.22
|
