55006 Optipress-Therm-Coude 90°

 retour

55006 Optipress-Therm-Coude 90°

avec filetage femelle

Info
matériau principal acier 1.0308
traitement de surface galvanisé
pression nominale PN 16
température de service max. 95 °C

Variantes de produits

Légende

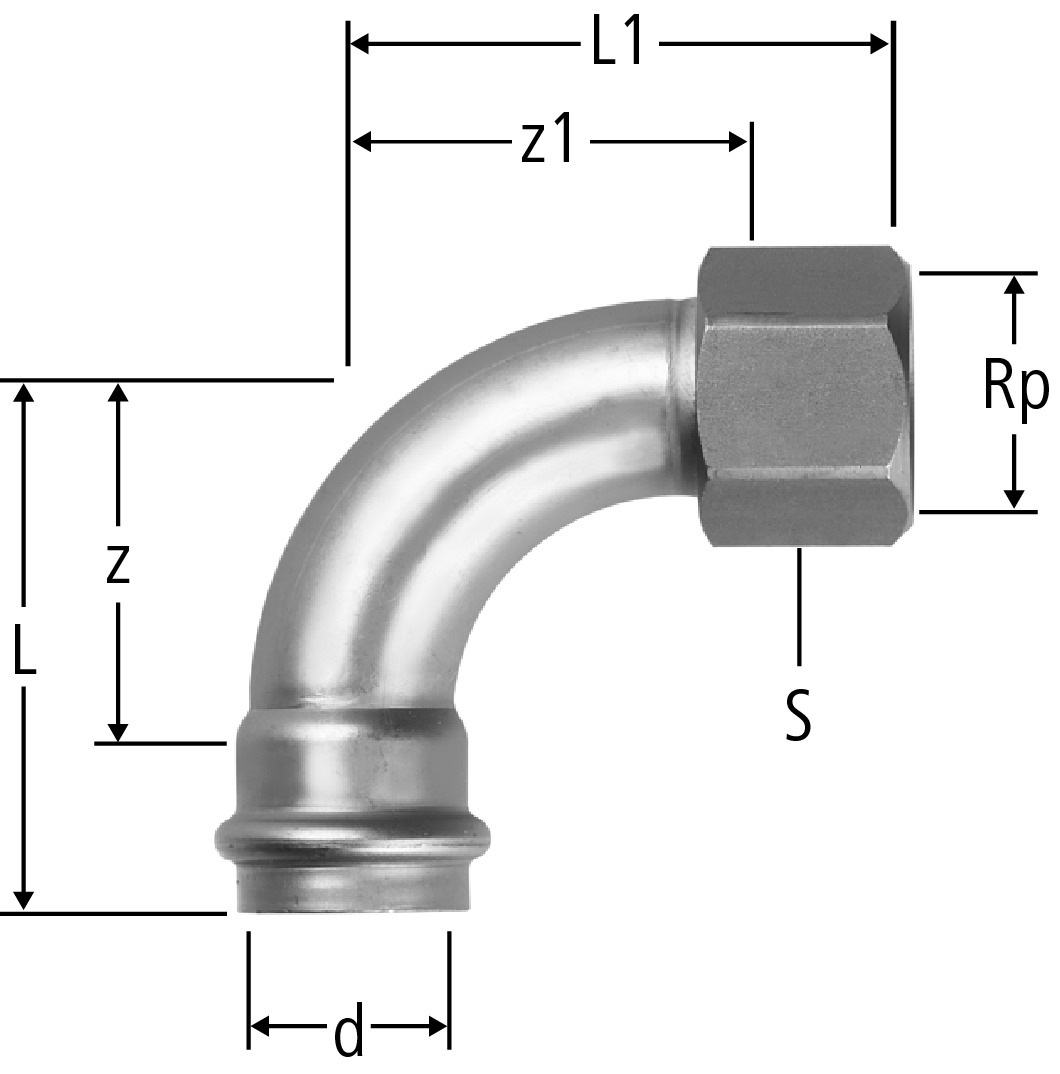

Rp d z z1 L L1 W S ζ Art. n° VE CHF RK suissetec Commander Pièces de rechange et accessoires
15 x ½ 15 x ½ ½ 15 16 31 48 41 90° 22 0.8 15 x ½ 55006.23 5
34 325.422
55006.23
pcs.
Afficher
18 x ½ 18 x ½ ½ 18 18 26 40 42 90° 24 0.5 18 x ½ 55006.24 5
34 325.423
55006.24
pcs.
Afficher
22 x ½ 22 x ½ ½ 22 26 44 49 54 90° 24 0.3 22 x ½ 55006.28 5
34 -
55006.28
pcs.
Afficher
22 x ¾ 22 x ¾ ¾ 22 37 44 60 55 90° 30 0.3 22 x ¾ 55006.25 5
34 325.424
55006.25
pcs.
Afficher
28 x 1 28 x 1 1 28 48 55 72 72 90° 38 0.4 28 x 1 55006.26 5
34 325.425
55006.26
pcs.
Afficher

CAO / BIM

Description Optipress-Therm-Coude 90°
Taille
Numéro d’article
55006.23
