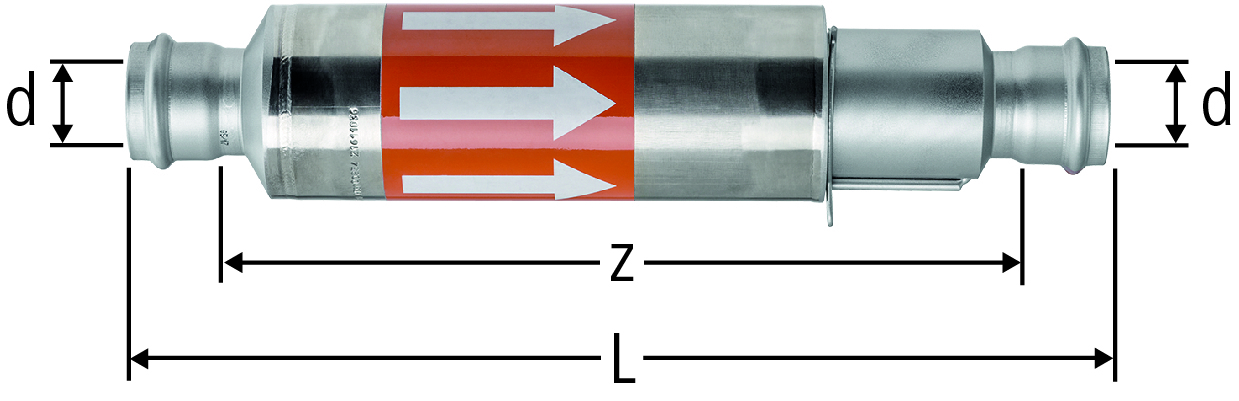

55023 Optipress-Therm-Compensateur axial
préalablement tendu
matériau principal | acier |
pression nominale | PN 16 |
température de service max. | 90 °C |
fluides | eau |
d | z | L | DA | F max. | ζ | Art. n° | VE | CHF | RK | suissetec | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22 | 271 | 325 | 25 | 1300 | 0.3 | 22 | 55023.34 | 1 |
| 34 | 315.113 | ||||
|
|||||||||||||||
28 | 277 | 325 | 25 | 1900 | 0.3 | 28 | 55023.35 | 1 |
| 34 | 315.114 | ||||
|
|||||||||||||||
35 | 264 | 316 | 25 | 2900 | 0.2 | 35 | 55023.36 | 1 |
| 34 | 315.115 | ||||
|
|||||||||||||||
42 | 278 | 350 | 25 | 4300 | 0.1 | 42 | 55023.37 | 1 |
| 34 | 315.116 | ||||
|
|||||||||||||||
54 | 280 | 360 | 25 | 6400 | 0.1 | 54 | 55023.38 | 1 |
| 34 | 315.117 | ||||
|
Indication
DA = marge de compensation
F max. = contrainte maximale admissible sur point fixe à 10 bar
CAO / BIM
Description | Optipress-Therm-Compensateur axial |
Taille |
|
Numéro d’article |
55023.34
|
