31008 Nourrice de distribution standard
avec raccord à écrou mobile Optipress-Aquaplus 92020 / 92021
Archiviertes Produkt
comprenant robinet de distribution 22052, robinet de rinçage 22070, réducteur de pression 12010, boîtier de raccordement 12085, couvercle de boîtier 12086, manchon 92046, Interbloc 31071
| matériau principal | bronze |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |

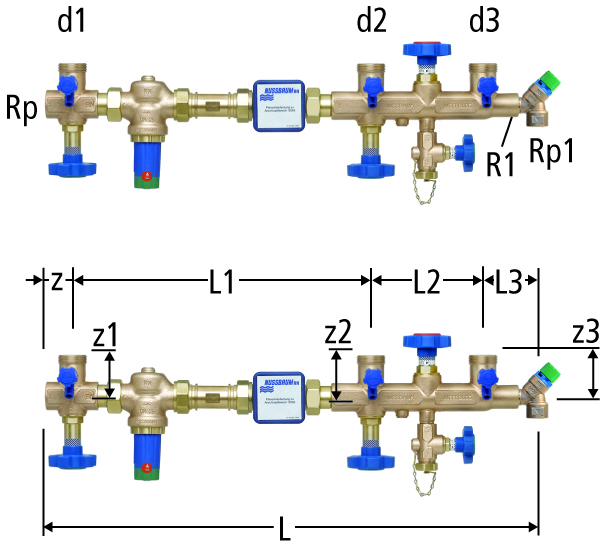

| Rp | Rp1 | R1 | d1 | d2 | d3 | z3 | L | L1 | L2 | L3 | Art. n° | VE | RK | VE | suissetec | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ¾ | ¾ | 22 | 22 | 22 | 73 | 706 | 434 | 160 | 75 | 1x22x22x22 | 31008.21 | 1 | 1 | - | plus disponible | |
| 1 | ¾ | ¾ | 22 | 28 | 22 | 73 | 706 | 434 | 160 | 75 | 1x22x28x22 | 31008.22 | 1 | 1 | - | plus disponible | |
| 1¼ | ¾ | ¾ | 22 | 22 | 22 | 73 | 751 | 472 | 160 | 75 | 1¼x22x22x22 | 31008.23 | 1 | 1 | - | plus disponible | |
| 1¼ | ¾ | ¾ | 22 | 28 | 22 | 73 | 751 | 472 | 160 | 75 | 1¼x22x28x22 | 31008.24 | 1 | 1 | - | plus disponible | |
| 1¼ | ¾ | ¾ | 22 | 28 | 28 | 78 | 751 | 472 | 160 | 75 | 1¼x22x28x28 | 31008.25 | 1 | 1 | - | plus disponible |
CAO / BIM
| Description | Nourrice de distribution standard |
| Taille |
|
| Numéro d’article |
31008.21
|
