84244 Optiflex-Flowpress-Té

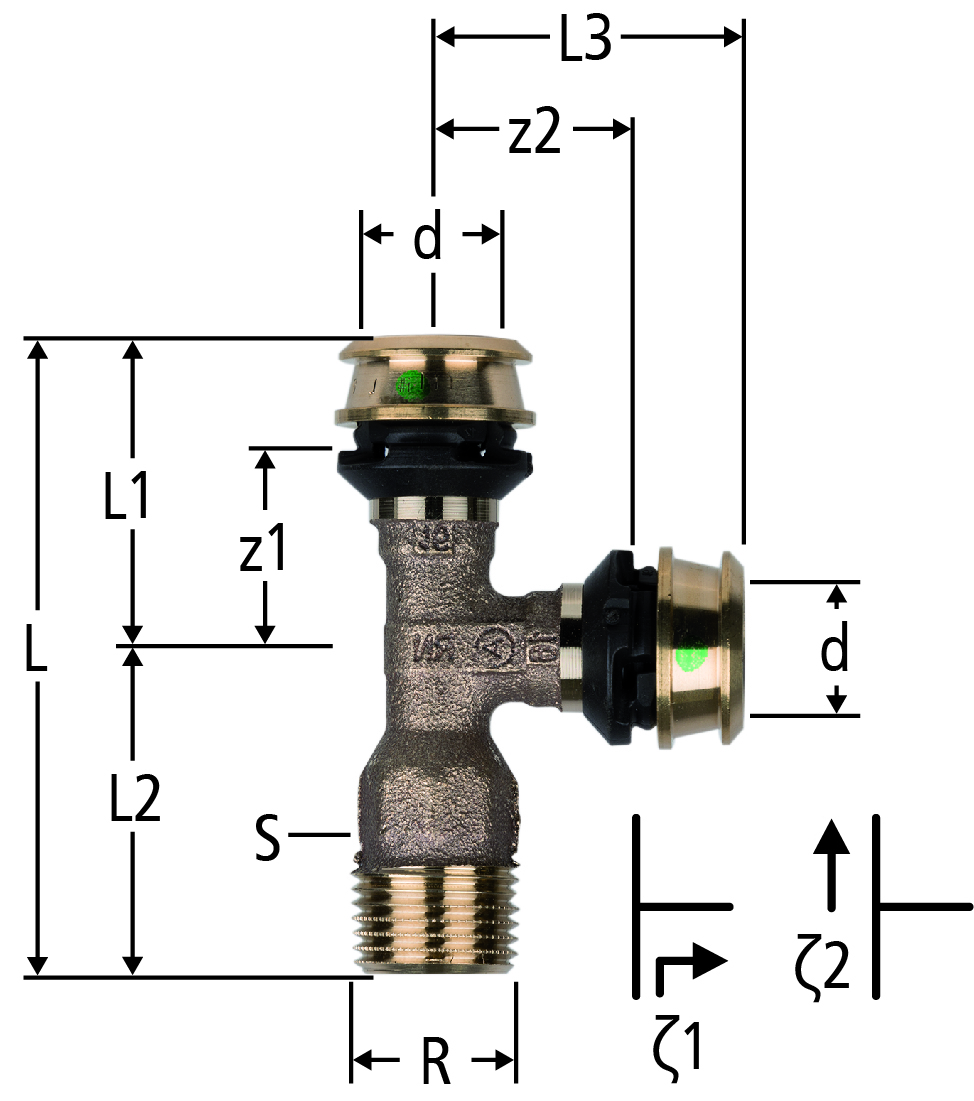

| R | d | z1 | z2 | L | L1 | L2 | L3 | S | ζ1 | ζ2 | N° d'art. | CHF | RK | VE | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 16 | 23 | 23 | 78 | 38 | 40 | 38 | 18 | 2.3 | 0.8 | ½ x 16 x 16 | 84244.21 |
| 10 | 5 | 343.151 |
| ¾ | 16 | 23 | 23 | 85 | 38 | 47 | 38 | 24 | 2.3 | 0.8 | ¾ x 16 x 16 | 84244.22 |
| 10 | 5 | 343.161 |
| ¾ | 20 | 26 | 25 | 87 | 40 | 47 | 40 | 24 | 2.3 | 1.0 | ¾ x 20 x 20 | 84244.23 |
| 10 | 5 | 343.162 |
CAO / BIM
| Description | Optiflex-Flowpress-Té |
| Taille |
|
| Numéro d’article |
84244.21
|
