90077 Optifitt-Serra-Réduction
| matériau principal | acier inoxydable 1.4404 |
| pression nominale | PN 16 |
| température de service max. | 90 °C |

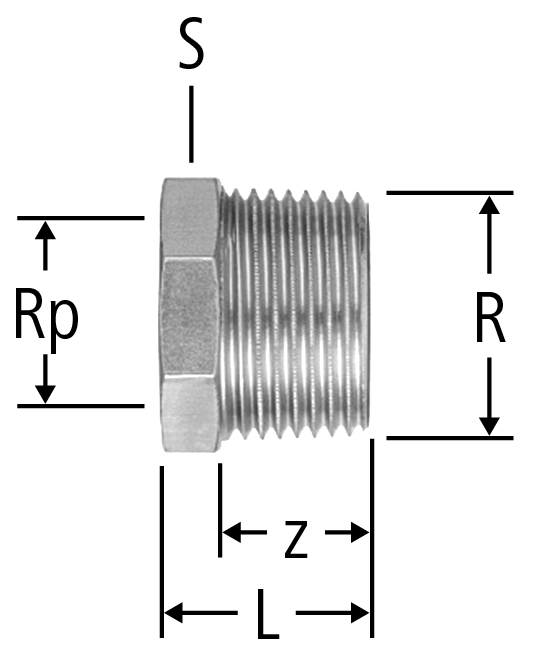

| Rp | R | z | L | S | ζ | Art. n° | VE | CHF | RK | suissetec | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ⅜ | ½ | 11 | 21 | 26 | 0.1 | ½ x ⅜ | 90077.23 | 1 |
| 05 | 214.512 |
| ⅜ | ¾ | 13 | 23 | 28 | 0.1 | ¾ x ⅜ | 90077.25 | 1 |
| 05 | - |
| ½ | ¾ | 11 | 24 | 30 | 0.1 | ¾ x ½ | 90077.26 | 1 |
| 05 | 214.513 |
| ½ | 1 | 14 | 27 | 35 | 0.1 | 1 x ½ | 90077.28 | 1 |
| 05 | - |
| ¾ | 1 | 12 | 27 | 35 | 0.1 | 1 x ¾ | 90077.29 | 1 |
| 05 | 214.514 |
| ¾ | 1¼ | 15 | 30 | 45 | 0.1 | 1¼ x ¾ | 90077.31 | 1 |
| 05 | - |
| 1 | 1¼ | 13 | 30 | 45 | 0.1 | 1¼ x 1 | 90077.32 | 1 |
| 05 | 214.515 |
| 1 | 1½ | 19 | 36 | 52 | 0.1 | 1½ x 1 | 90077.35 | 1 |
| 05 | - |
| 1¼ | 1½ | 17 | 36 | 52 | 0.1 | 1½ x 1¼ | 90077.36 | 1 |
| 05 | 214.516 |
| 1¼ | 2 | 17 | 36 | 63 | 0.1 | 2 x 1¼ | 90077.40 | 1 |
| 05 | - |
| 1½ | 2 | 17 | 36 | 63 | 0.1 | 2 x 1½ | 90077.41 | 1 |
| 05 | 214.517 |
| 2 | 2½ | 21 | 45 | 81 | 0.1 | 2½ x 2 | 90077.43 | 1 |
| 05 | 214.518 |
| 2½ | 3 | 20 | 47 | 95 | 0.1 | 3 x 2½ | 90077.44 | 1 |
| 05 | - |
CAO / BIM
| Description | Optifitt-Serra-Réduction |
| Taille |
|
| Numéro d’article |
90077.23
|
