85135 Optiflex-Profix-Pièce intermédiaire
pour Optipress-Aquaplus, avec embout à sertir mâle
| matériau principal | acier inoxydable 1.4404 |
| pression nominale | PN 10 |
| température de service max. | 70 °C |

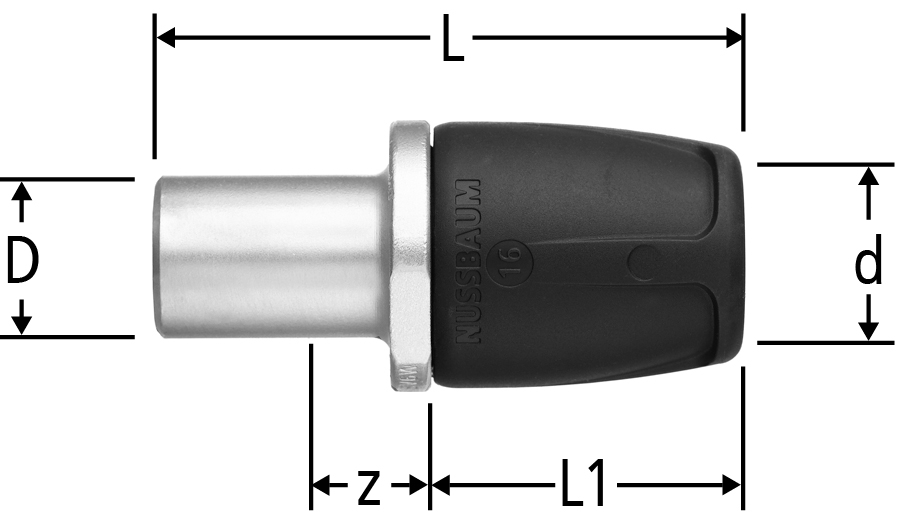

| d | D | z | L | L1 | ζ | Art. n° | VE | CHF | RK | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 15 | 13 | 69 | 34 | 0.1 | 15 x 16 | 85135.21 | 1 |
| 04 | 332.811 | ||||
|
|
|||||||||||||||
| 20 | 22 | 11 | 69 | 34 | 0.2 | 22 x 20 | 85135.23 | 1 |
| 04 | 332.812 | ||||
|
|
|||||||||||||||
CAO / BIM
| Description | Optiflex-Profix-Pièce intermédiaire |
| Taille |
|
| Numéro d’article |
85135.21
|
