90201 Optifitt-Serra-Mamelon G ¾

Info

lors de la commande, veuillez indiquer la mesure L (longueur) dans le champs de commentaires

matériau principal	bronze CC499K
pression nominale	PN 16
température de service max.	90 °C

Variantes de produits

Légende

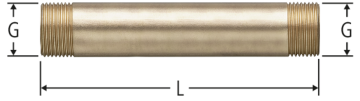

G	L	L min	L max	ζ		Art. n°	VE	CHF	suissetec	Commander
¾ x 35-80 ¾ x 35-80	¾		35	80	0.1	¾ x 35-80	90201.01	1	51	-	90201.01 Commander pcs.
¾ x 81-120 ¾ x 81-120	¾		81	120	0.2	¾ x 81-120	90201.02	1	51	-	90201.02 Commander pcs.
¾ x 121-160 ¾ x 121-160	¾		121	160	0.2	¾ x 121-160	90201.03	1	51	-	90201.03 Commander pcs.
¾ x 161-200 ¾ x 161-200	¾		161	200	0.2	¾ x 161-200	90201.04	1	51	-	90201.04 Commander pcs.
¾ x 201-250 ¾ x 201-250	¾		201	250	0.2	¾ x 201-250	90201.05	1	51	-	90201.05 Commander pcs.
¾ x 251-300 ¾ x 251-300	¾		251	300	0.2	¾ x 251-300	90201.06	1	51	-	90201.06 Commander pcs.
¾ x 301-350 ¾ x 301-350	¾		301	350	0.2	¾ x 301-350	90201.07	1	51	-	90201.07 Commander pcs.
¾ x 351-400 ¾ x 351-400	¾		351	400	0.2	¾ x 351-400	90201.08	1	51	-	90201.08 Commander pcs.
¾ x 401-450 ¾ x 401-450	¾		401	450	0.2	¾ x 401-450	90201.09	1	51	-	90201.09 Commander pcs.
¾ x 451-500 ¾ x 451-500	¾		451	500	0.3	¾ x 451-500	90201.10	1	51	-	90201.10 Commander pcs.
¾ x 501-550 ¾ x 501-550	¾		501	550	0.3	¾ x 501-550	90201.11	1	51	-	90201.11 Commander pcs.
¾ x 551-600 ¾ x 551-600	¾		551	600	0.3	¾ x 551-600	90201.12	1	51	-	90201.12 Commander pcs.
¾ x 601-650 ¾ x 601-650	¾		601	650	0.3	¾ x 601-650	90201.13	1	51	-	90201.13 Commander pcs.
¾ x 651-700 ¾ x 651-700	¾		651	700	0.3	¾ x 651-700	90201.14	1	51	-	90201.14 Commander pcs.
¾ x 701-800 ¾ x 701-800	¾		701	800	0.3	¾ x 701-800	90201.15	1	51	-	90201.15 Commander pcs.
¾ x 801-900 ¾ x 801-900	¾		801	900	0.3	¾ x 801-900	90201.16	1	51	-	90201.16 Commander pcs.
¾ x 901-1000 ¾ x 901-1000	¾		901	1000	0.3	¾ x 901-1000	90201.17	1	51	-	90201.17 Commander pcs.
¾ x 110 ¾ x 110	¾	110			0.2	¾ x 110	90201.18	1	51	-	90201.18 Commander pcs.
¾ x 130 ¾ x 130	¾	130			0.2	¾ x 130	90201.19	1	51	-	90201.19 Commander pcs.
¾ x 250 ¾ x 250	¾	250			0.2	¾ x 250	90201.20	1	51	-	90201.20 Commander pcs.
¾ x 300 ¾ x 300	¾	300			0.2	¾ x 300	90201.21	1	51	-	90201.21 Commander pcs.
¾ x 315 ¾ x 315	¾	315			0.2	¾ x 315	90201.22	1	51	-	90201.22 Commander pcs.
¾ x 350 ¾ x 350	¾	350			0.2	¾ x 350	90201.23	1	51	-	90201.23 Commander pcs.
¾ x 400 ¾ x 400	¾	400			0.2	¾ x 400	90201.24	1	51	-	90201.24 Commander pcs.

Tout dans le panier

CAO / BIM

Description	Optifitt-Serra-Mamelon G ¾
Taille
Numéro d’article	90201.01
