8161 Clapet anti-retour
avec prise de raccordement pour soupape de sûreté 1300/1302
Produit ancien
| matériau principal | bronze CC499K |
| fluides | eau |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| Kopie von Betriebstemperatur max. | 90 °C |

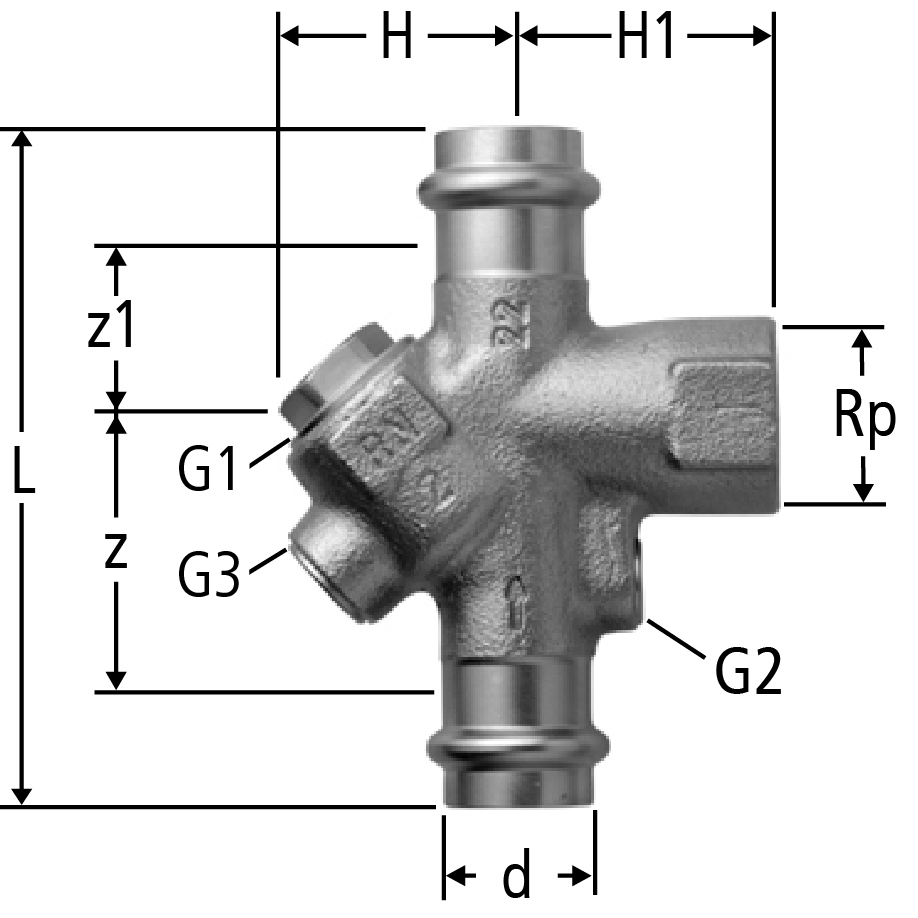

| Rp | G1 | G2 | G3 | d | z | z1 | L | H | H1 | Art. n° | RK | VE | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ¾ | ¾ | ¼ | ⅜ | 22 | 42 | 25 | 115 | 41 | 45 | 22 | 8161.24 | 1 | - | plus disponible | ||||
|
|
||||||||||||||||||
| ¾ | 1 | ¼ | ⅜ | 28 | 53 | 24 | 125 | 50 | 50 | 28 | 8161.25 | 1 | - | plus disponible | ||||
|
|
||||||||||||||||||
| ¾ | 1¼ | ¼ | ⅜ | 35 | 60 | 28 | 140 | 62 | 55 | 35 | 8161.26 | 1 | - | plus disponible | ||||
|
|
||||||||||||||||||
CAO / BIM
| Description | Clapet anti-retour |
| Taille |
|
| Numéro d’article |
8161.24
|
