8216 Robinet à membrane
avec manchon à sertir
Produit ancien
avec membrane EPDM
| matériau principal | bronze CC499K |
| fluides | eau |
| pression de fonctionnement max. | 16 bar |
| pression nominale | PN 16 |
| température de service max. | 70 °C |

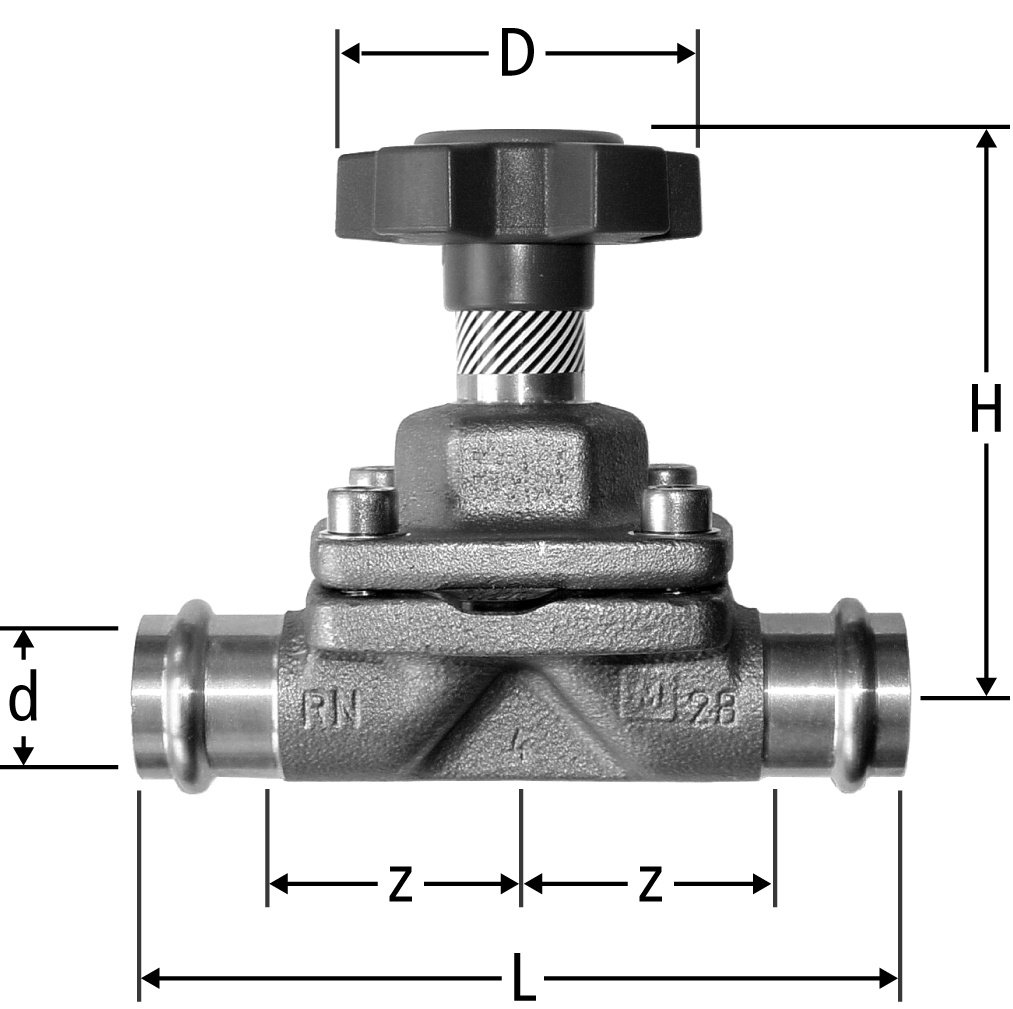

| d | D | z | L | H | Art. n° | RK | VE | suissetec | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 55 | 33 | 110 | 80 | 15 (½) | 8216.22 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 18 | 55 | 33 | 110 | 82 | 18 (½) | 8216.23 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 22 | 55 | 34 | 115 | 84 | 22 (¾) | 8216.24 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 28 | 70 | 49 | 145 | 108 | 28 (1) | 8216.25 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 35 | 70 | 47 | 145 | 111 | 35 (1¼) | 8216.26 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 42 | 70 | 49 | 170 | 115 | 42 (1½) | 8216.27 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
| 54 | 90 | 60 | 200 | 153 | 54 (2) | 8216.28 | 1 | - | plus disponible | ||||
|
|
|||||||||||||
